Betech is the exclusive distributor of Pujol gearboxes in mainland UK. If you have an existing Pujol gearbox that needs replacing, send us a photograph of the nameplate and we’ll identify what’s fitted and find the right replacement — whether that’s a current Pujol unit or the closest equivalent where the original series is no longer manufactured.
Pujol began in Manresa, Catalonia, in 1918, designed its first gearbox in 1932 and registered the Pujol Muntalà name in 1965, when series production started. It has been part of the TECO Group since 2015.
Pujol gearboxes have been fitted to UK machinery for decades, and many of the series still running are no longer made. Older units carry earlier names – for example Pujol Muntalà on the gearbox, or perhaps Pujol Transmissions Ltd on UK paperwork. The best thing to do is send us photos of the nameplate and gearbox, and we can do the rest.
Up to 30mm hollow bore / 140Nm torque

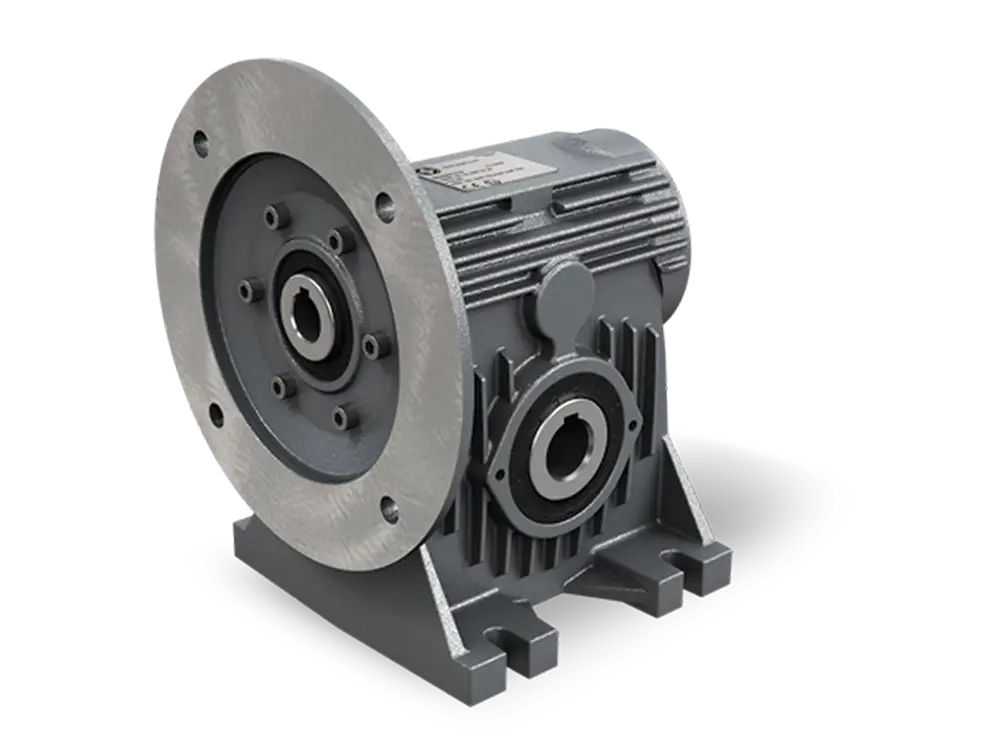

Compact cast iron worm gearboxes, foot mounted (LWP) or flange mounted (LWB), up to 4kW. Long-life oil and next to no maintenance.
Up to 45mm hollow bore / 1025Nm torque

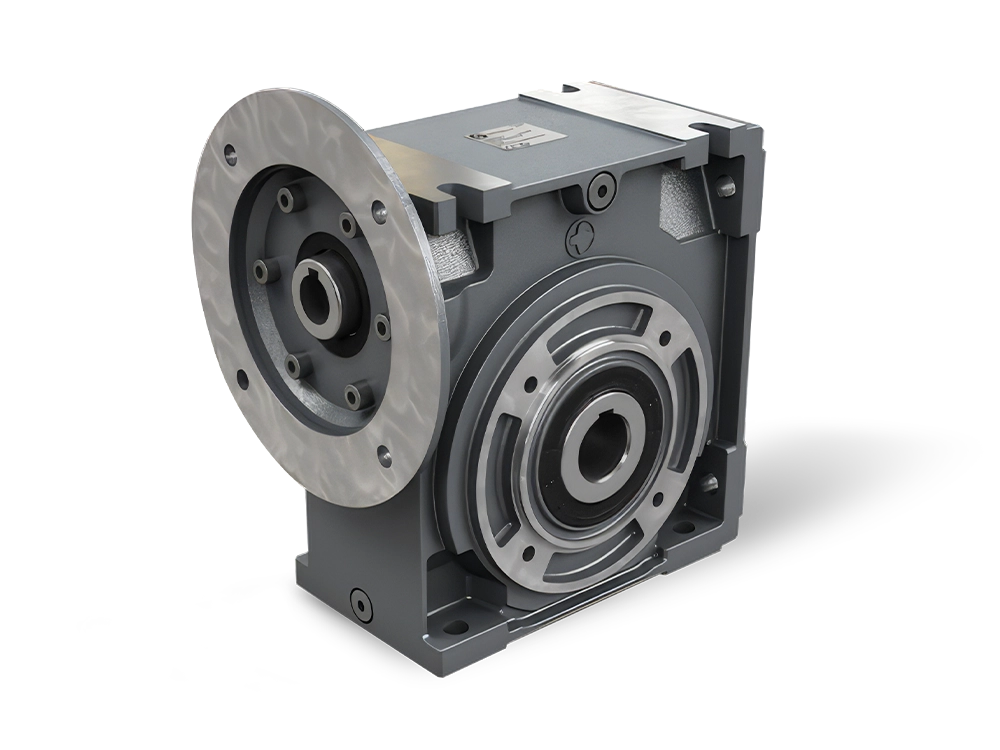

Universal-mount cast iron worm gearboxes in three sizes, up to 18.5kW. Filled with synthetic oil for any mounting position.
Up to 40mm hollow bore / 432Nm torque

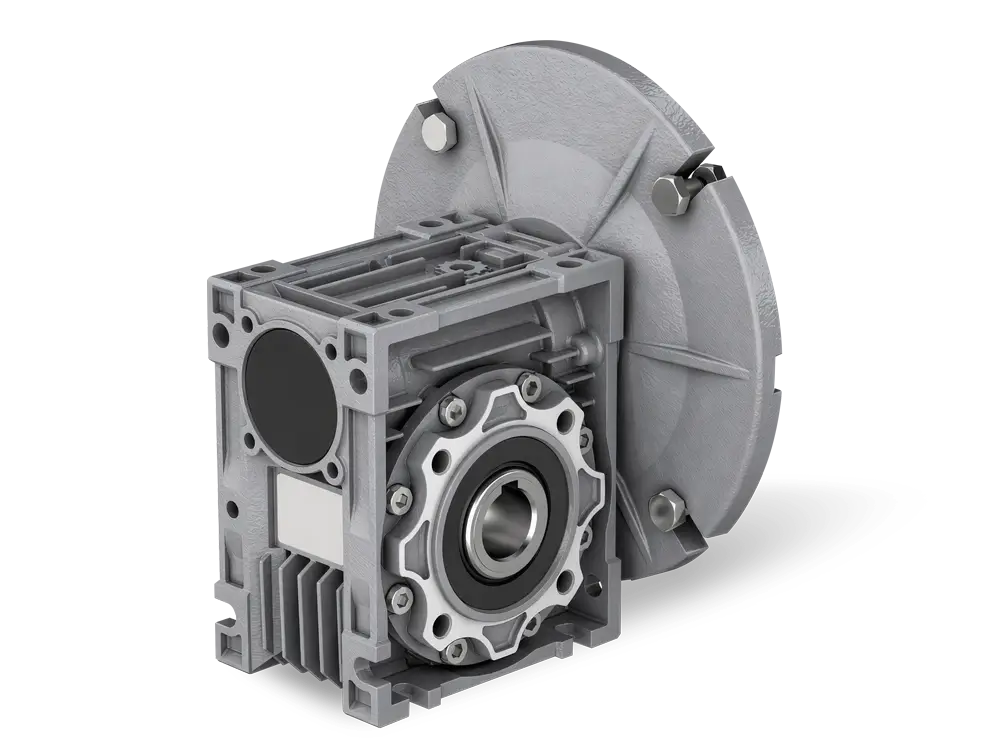

Die-cast aluminium worm gearboxes in seven sizes – the lighter, cost-effective choice where a cast iron casing isn’t needed.
Up to 38mm solid shaft / 617Nm torque

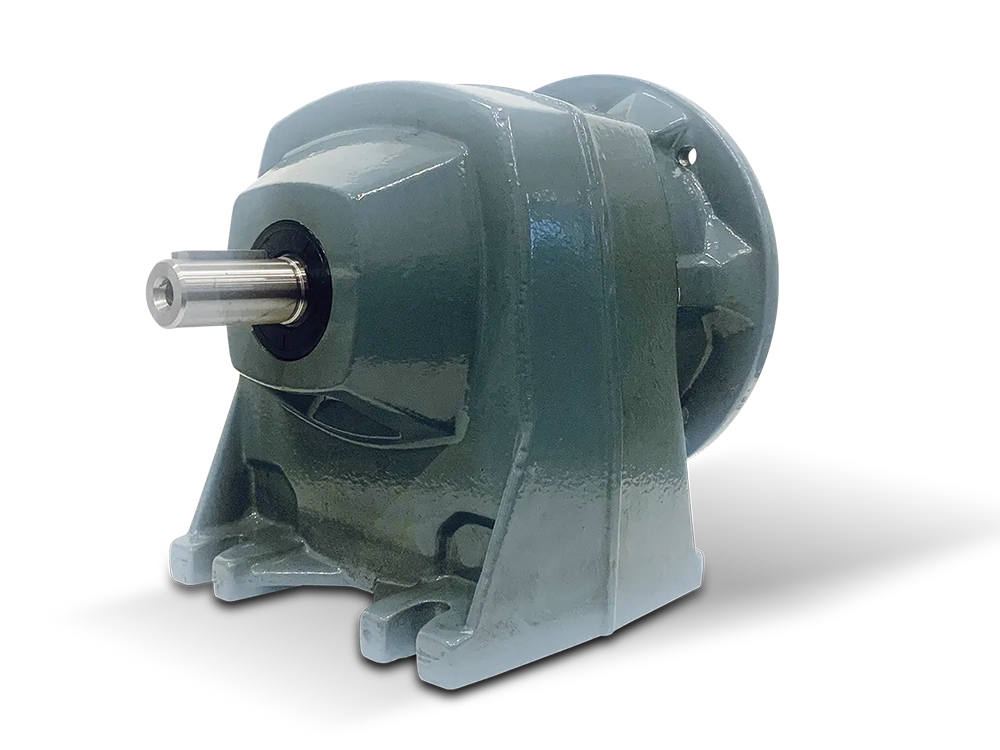

Two-stage cast iron inline helical gearboxes in five casing sizes, foot (IP) or flange (IB) mounted, up to 7.5kW.
Typical applications
Bevel helical gearboxes are used as a robust solution to withstand tough environments and unpredictable torque demands.
Pujol worm geared motors are often selected for vegetable production, such as grading, sorting and washing, thanks to their exceptional reliability.
Geared motors are used to drive conveyors and sort materials. Worm gearboxes are frequently used to overband magnets to reclaim ferrous metals.
Pujol is an established industrial gearbox and geared motor brand within the TECO Group, with a history dating back to 1918. Founded in Manresa, Catalonia, Pujol designed its first gearbox in 1932 and developed a strong reputation in industrial power transmission.
Pujol became part of Motovario in 2014, with Motovario subsequently joining the TECO Group in 2015. Today, Pujol and Motovario form part of TECO’s wider portfolio of motors, drives and power transmission products.
Betech has a strong relationship with the group. We are a Motovario Assembly Centre and the exclusive UK distributor for Pujol, supplying Pujol gearboxes with product selection, replacement identification and technical support. We also supply TECO motors and drives, giving customers access to complementary motor and transmission solutions.
A replacement gearbox only saves time if it bolts on. Mounting, shaft sizes, ratio and motor fitting all have to line up, or a straightforward swap turns into new baseplates, couplings and torque arms. That’s why we start from the nameplate.
Send us the nameplate. A clear photograph of the gearbox nameplate is the best starting point. If possible, also send a photograph of the gearbox and its mounting, plus the motor nameplate if one is fitted.. Email sales@betech.co.uk or use Quick Quote.
We identify the unit. Series, size, ratio, mounting and input type – including older Pujol Muntalà and Pujol Transmissions units that are no longer in the catalogue.
We match it or offer the nearest replacement. Where Pujol still produces an equivalent, we’ll quote the appropriate current unit. Where the original is no longer available, we’ll identify the closest suitable replacement and highlight any differences in mounting, shaft dimensions or ratio before you order.
Reading the nameplate. On current Pujol units, a C at the end of the series code – LWPC, LWBC, IPC, IBC – means the version built to take a motor. Without the C, the gearbox has a solid input shaft. It an M features, it was most likely supplied from the factory with a motor already fitted.
Some Pujol series are no longer made, and not every obsolete unit has a direct successor. When that happens, we turn to Motovario – Pujol’s sister company within the TECO Group – and find the closest match, assembled at our Motovario Assembly Centre in Heckmondwike.
When this is the case, we will provide drawings and advise on likely differences, so you are best prepared for when your new gearbox arrives.
Exclusive mainland UK distributor. Betech is the exclusive distributor of Pujol in mainland UK, through our relationship with Motovario and the TECO Group.
Current and obsolete units. We supply Pujol’s current worm and inline helical ranges, and find replacements for Pujol and Pujol Muntalà units that are no longer made.
Stock and lead times. We keep stock of selected worm and inline Pujol gearboxes, but we will confirm on quote.
Motors too. Pujol’s motor-coupling versions take standard IEC motors, and we stock those too.
Two-year warranty. Pujol gearboxes carry a two-year manufacturer’s warranty from the date of delivery.
Breakdown cover. If a line is down, call us on 01924 411921. We quote in minutes, not days.
ISO 9001 certified. Betech 100pt Ltd is UKAS-accredited and ISO 9001 registered.
Frequently asked questions
Pujol is a gearbox brand within the TECO Group, with its current operations closely linked to Motovario. Pujol originated in Manresa, Catalonia, in 1918 and designed its first gearbox in 1932. The business became part of Motovario in 2014, with Motovario subsequently joining the TECO Group in 2015.
Yes. Pujol Muntalà, S.A. is the name the company registered in 1965, when series production began, and it still appears on many older nameplates and catalogues. It is the same brand, now part of the TECO Group.
Yes. Pujol Transmissions Ltd was the previous UK distributor for Pujol and traded under the Pujol name before ceasing to operate. Betech subsequently became the UK distributor for Pujol and continues to support equipment supplied through the previous distributor.
Betech 100pt Ltd, based in Heckmondwike, West Yorkshire, is the exclusive distributor of Pujol in mainland UK. Call 01924 411921 or email sales@betech.co.uk.
Yes. Send us the nameplate and we’ll check whether Pujol makes a current equivalent. If it doesn’t, we’ll offer the closest match from Motovario, Pujol’s sister company within the TECO Group, and tell you how it differs from the original before you order.
A photo of the nameplate, ideally with photos of the gearbox, its mounting and the motor nameplate if one is fitted. The series code, size and ratio on the plate usually identify the unit. If the plate is missing or unreadable, the mounting dimensions and shaft sizes will do.
It marks the version built to take a motor. LWPC, LWBC, IPC and IBC units have a motor coupling input; LWP, LWB, IP and IB units have a solid input shaft.
Two lines: worm gearboxes – the LXW, LWP–LWB and LAC series, up to 1,025Nm – and IP–IB inline helical gearboxes, up to 617Nm. If your unit is from another Pujol range, send us the nameplate and we’ll find the right replacement.
The LXW and LWP–LWB worm gearboxes and the IP–IB inline helical gearboxes have grey cast iron casings. The LAC worm gearbox is die-cast aluminium, for lighter duties.
Yes. Pujol’s motor-coupling versions are built to accept standard IEC motors. We stock IEC frame motors too, so we can supply the gearbox and motor together.
Two years from the date of delivery.
We keep stock of selected worm and inline Pujol gearboxes. Where a unit isn’t in stock, we confirm the factory lead time on quote.
Downloads
For technical information, brochures and further product details, visit our downloads page.
