Betech is a National Distribution Partner and factory-certified Assembly Centre for Motovario, supplying a comprehensive range of Motovario gearboxes, gear reducers, geared motors, electric motors and power transmission products throughout the UK.
Motovario is an Italian manufacturer of industrial transmission equipment, established in 1965, with an extensive product range covering worm gearboxes, helical gear reducers, bevel helical gearboxes, shaft-mounted gearboxes, planetary gearboxes, heavy-duty gearboxes and mechanical variators, as well as electric motors and integrated inverter motors.
Betech has been a long-standing Motovario partner and factory-certified Assembly Centre for more than a decade. We hold substantial stock of Motovario components, allowing us to assemble thousands of possible configurations of inline helical, bevel helical and shaft-mounted gearboxes, alongside comprehensive stock of worm gearboxes, mechanical variators, motors and other Motovario products.
Our technical team can assist with new gearbox selection, replacement Motovario gearboxes, obsolete product replacement and cross-referencing alternative manufacturers, helping customers find the right power transmission solution for their application.
Motovario product range

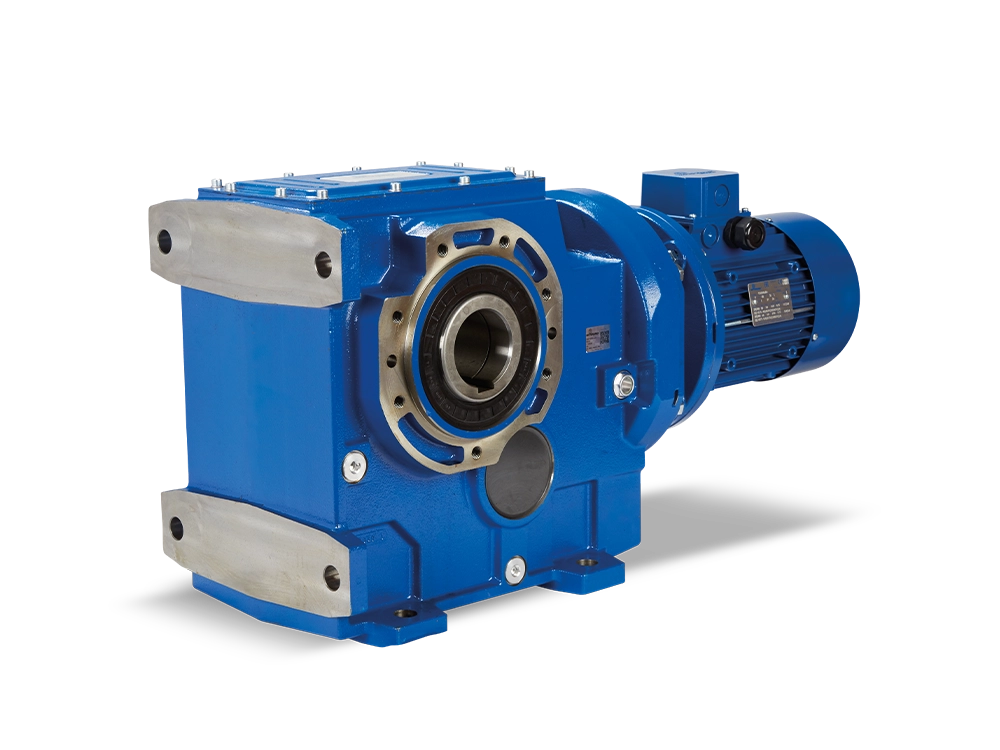

Up to 100mm hollow bore / 13,000Nm torque
Robust cast iron construction with a European standard footprint, for straightforward interchange on existing installations.

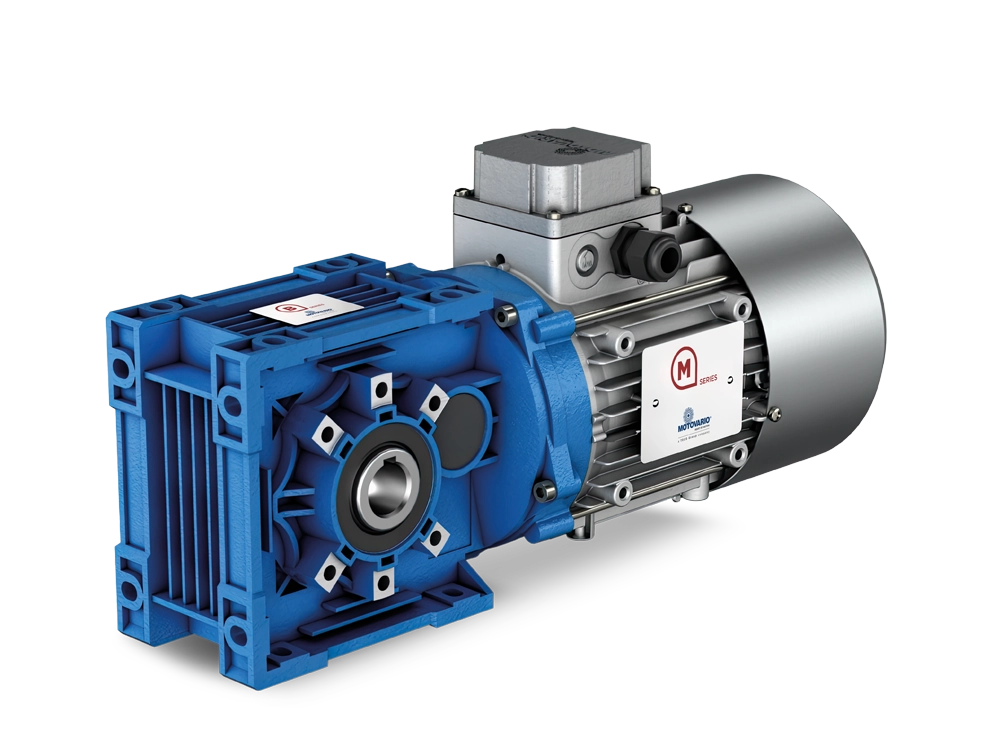

Up to 35mm hollow bore / 450Nm torque
Lightweight aluminium casing offering a more efficient alternative to a worm unit at the same duty.

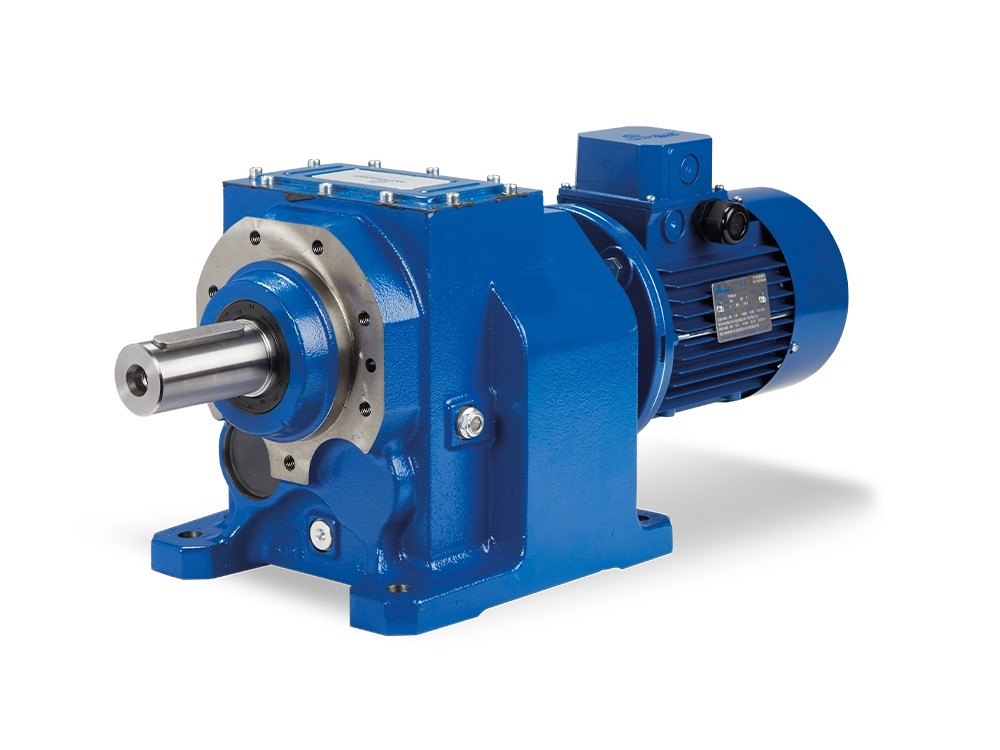

Up to 90mm shaft / 8000Nm torque
Robust cast iron construction with a European standard footprint, for straightforward interchange on existing installations.

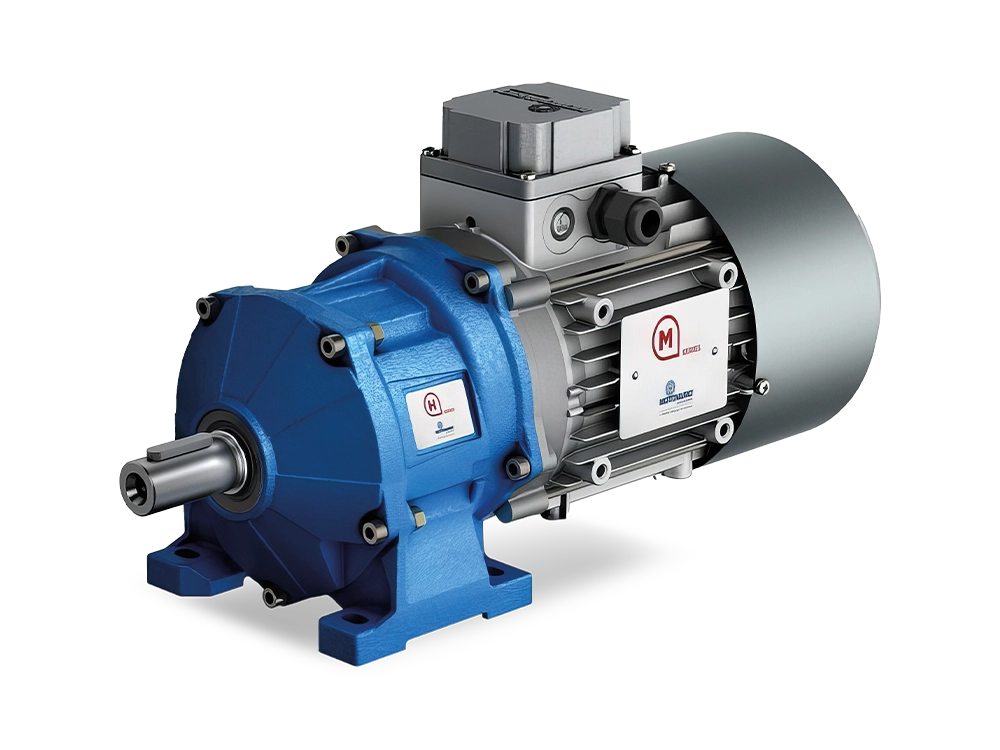

Up to 40mm shaft / 480Nm torque
Cost effective aluminium construction for lower power applications. Foot, flange or universal mounting.

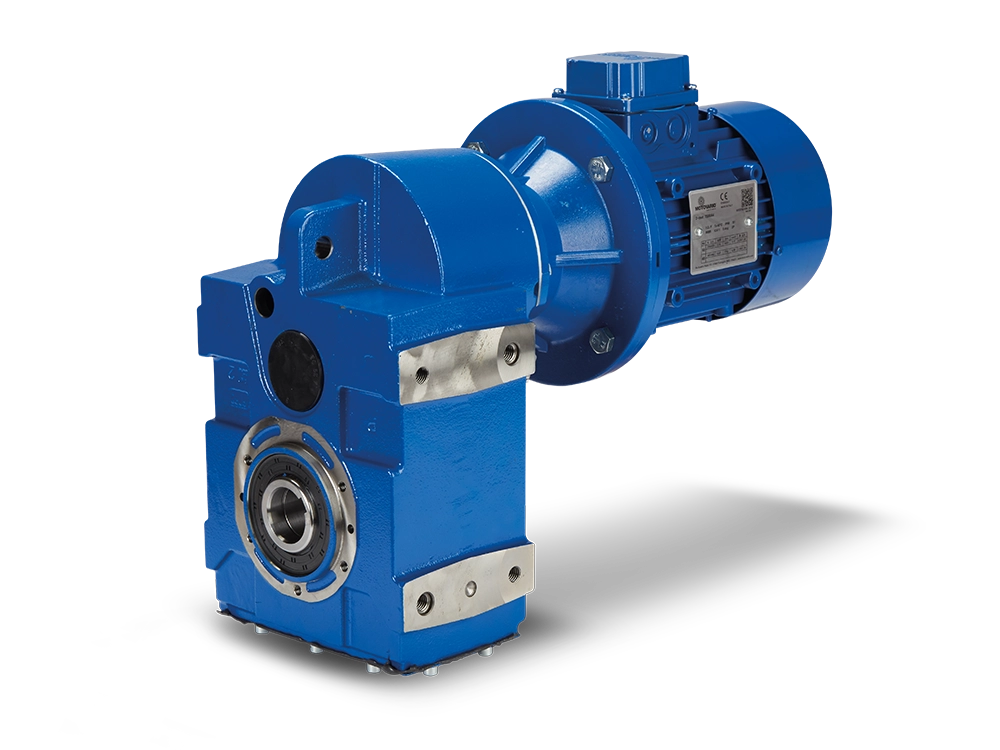

Up to 120mm hollow bore / 18,000Nm torque
Mounts directly onto a driven shaft, for applications such as screw conveyors and augers, high torque in a compact envelope.

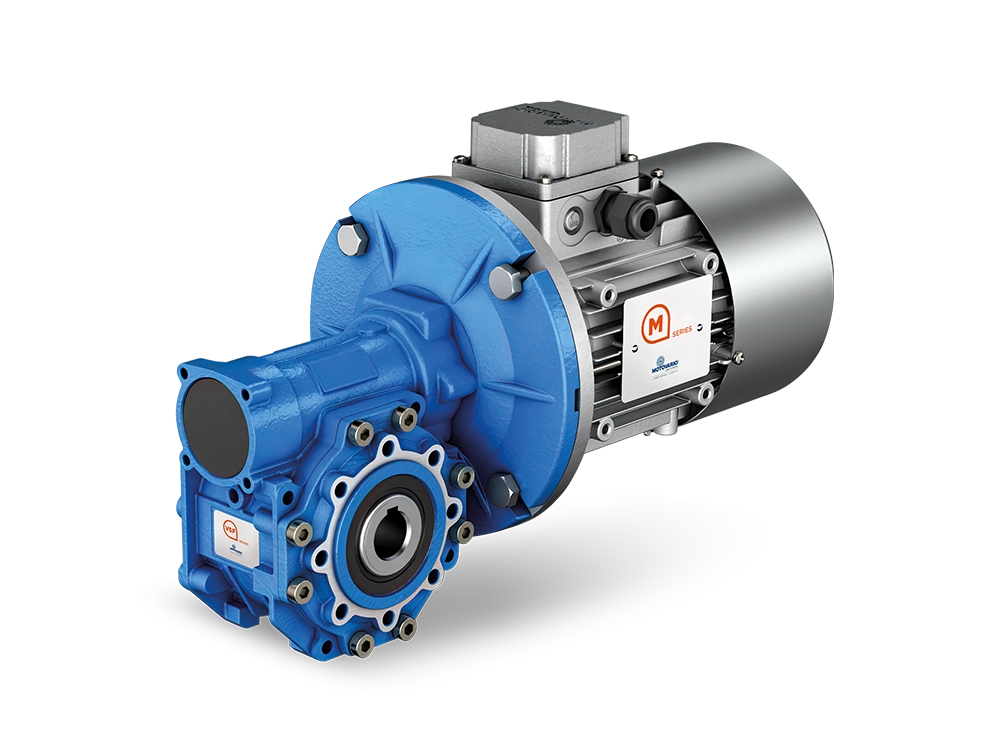

Up to 50mm hollow bore / 1550Nm torque
Superior worm gearboxes that are proven to last. Available as single worm, double worm or helical worm combinations.
Up to 42mm hollow bore / 630Nm torque
Compact round body casing, previously sold as Spaggiari, dimensionally interchangeable with several other round body worm units.

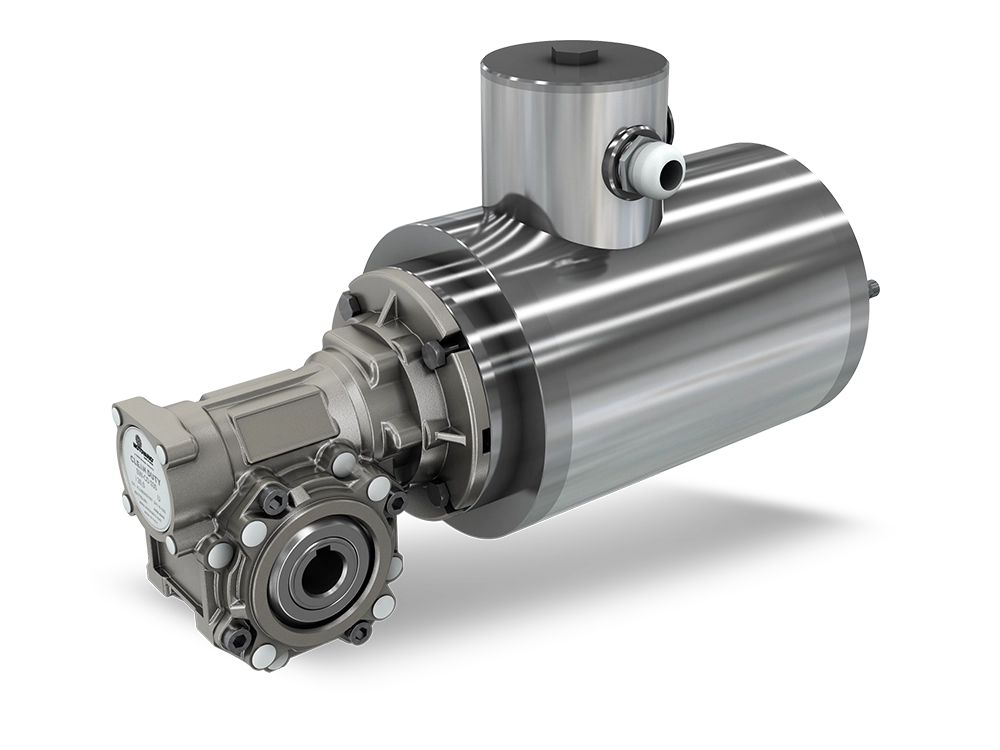

Up to 35mm hollow bore / 430Nm torque
Smooth bodied gearbox with a compact profile for washdown environments where hygiene standards must be maintained.

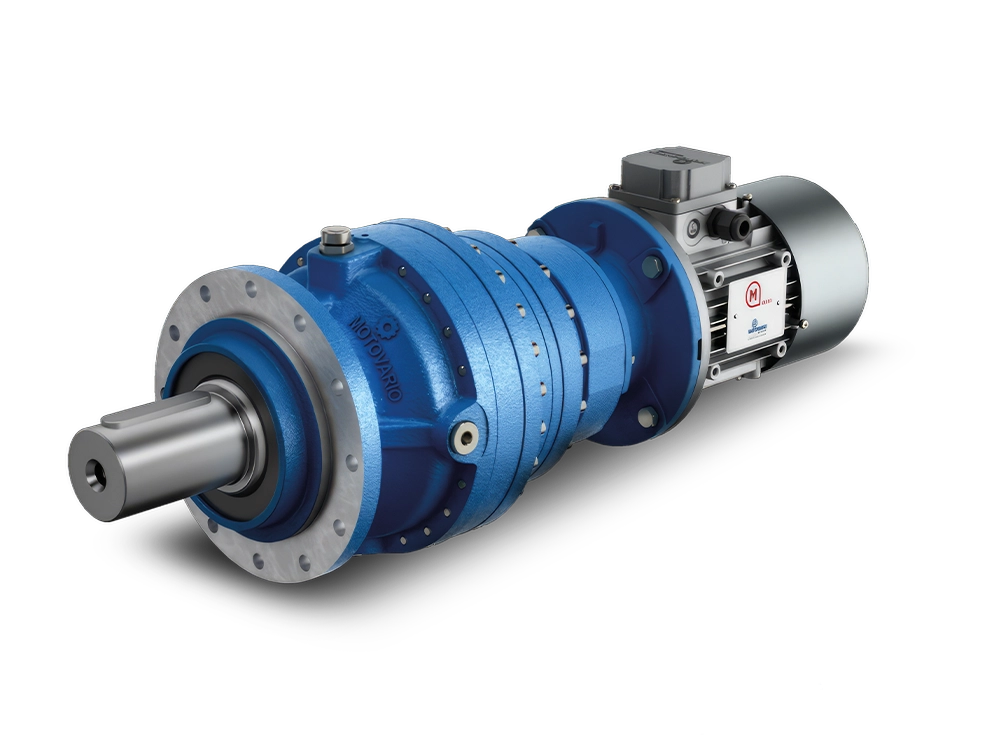

Up to 120mm shaft / 100,000Nm torque
High torque density at low output speeds in a compact footprint. Foot or flange mounted, with solid shaft, hollow bore and other output options.

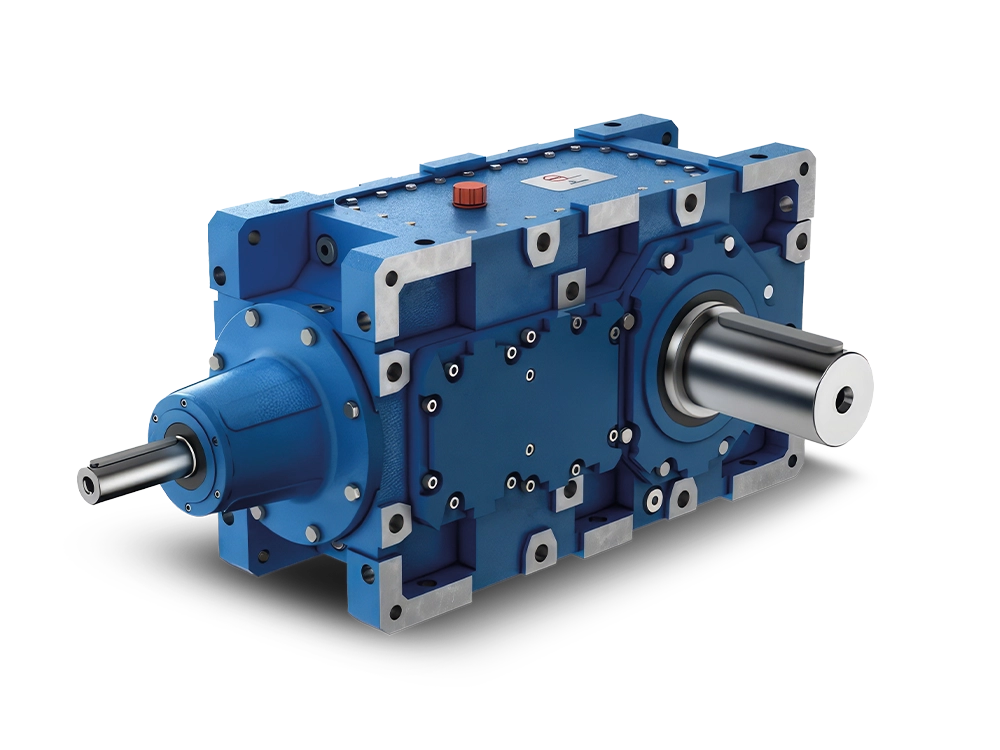

Up to 220mm shaft / 110,000Nm torque
Parallel helical and bevel helical split casing gearboxes with up to four reduction stages, for critical and arduous applications.

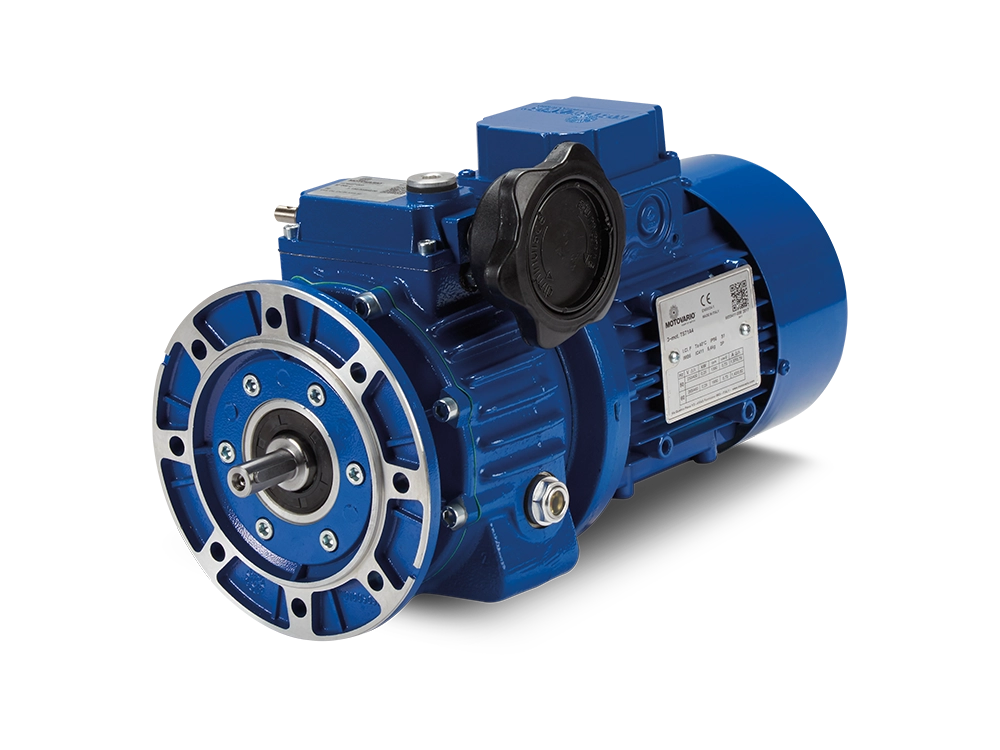

Up to 7.5kW / 144Nm torque
Adjustable mechanical speed control, for harsh conditions or where electrical speed control is impractical.

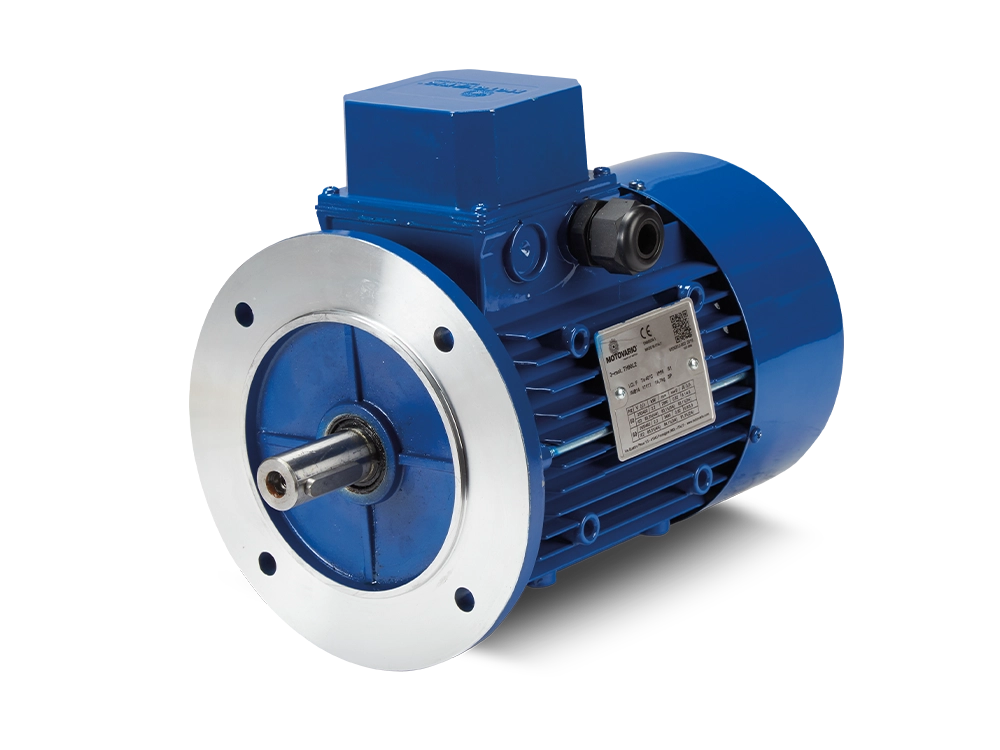

Up to IEC 132 frame / 7.5kW / 2,4,6 Pole
Reliable, efficient three phase aluminium frame motors. IP56 ingress protection for indoor or outdoor applications.

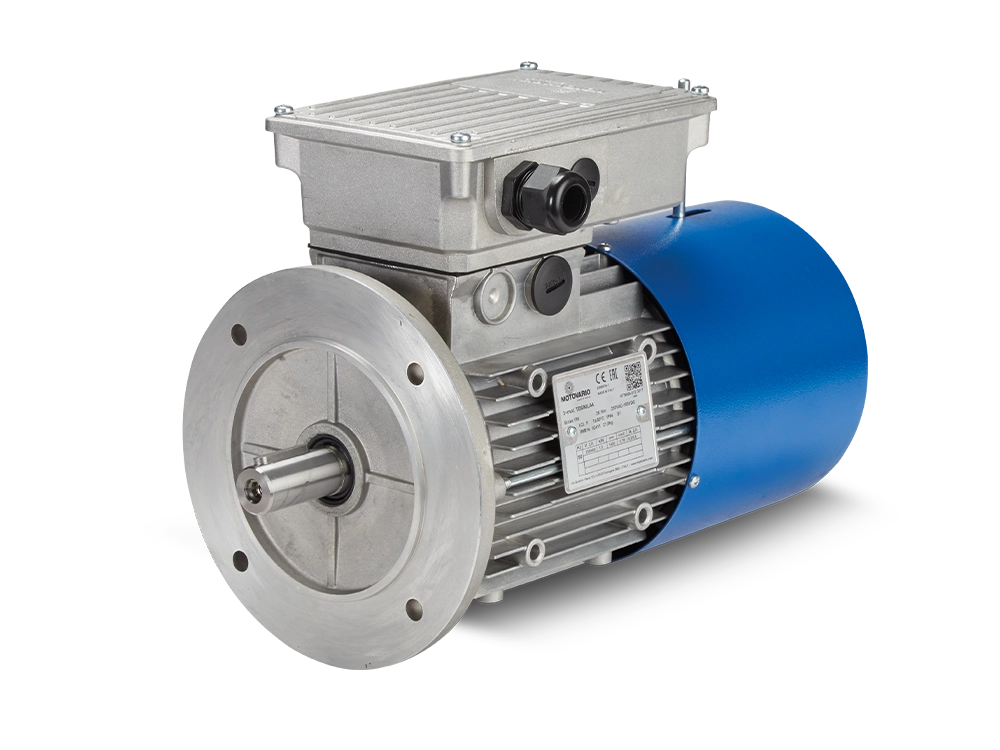

Up to IEC 132 frame / 7.5kW / 2,4,6 Pole
European manufactured brake motors with DC or AC brake voltages, for applications requiring stopping or holding.

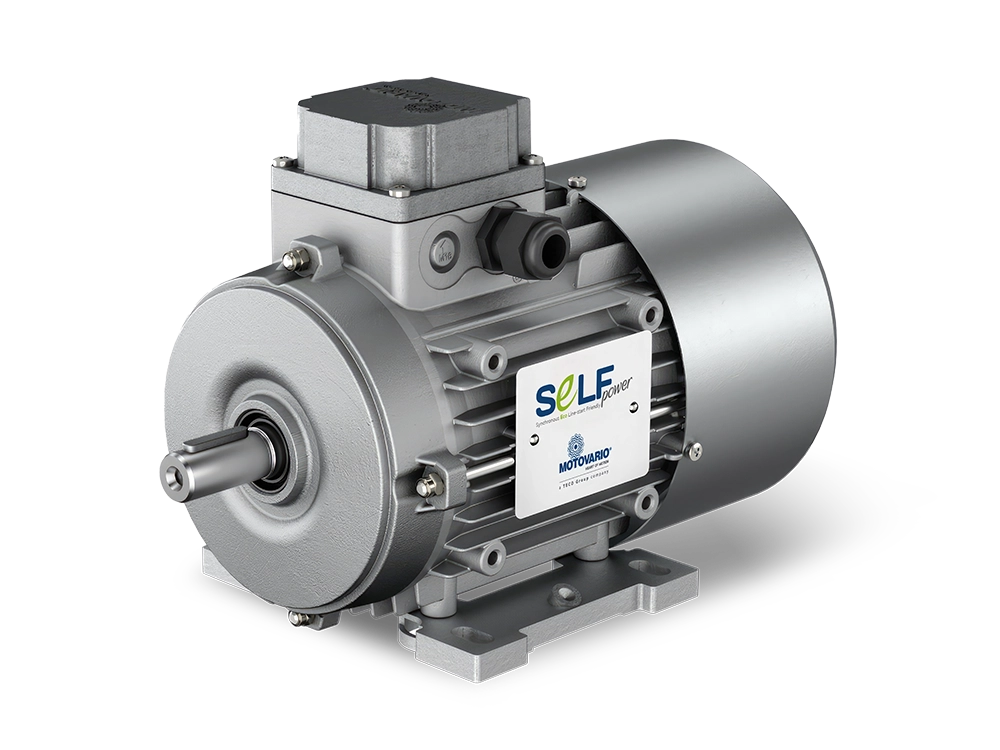

Up to IEC 132 frame / 7.5kW / 1500rpm
A new hybrid design of electric motor capable of maintaining accurate speeds without encoder feedback regardless of fluctuations in load.

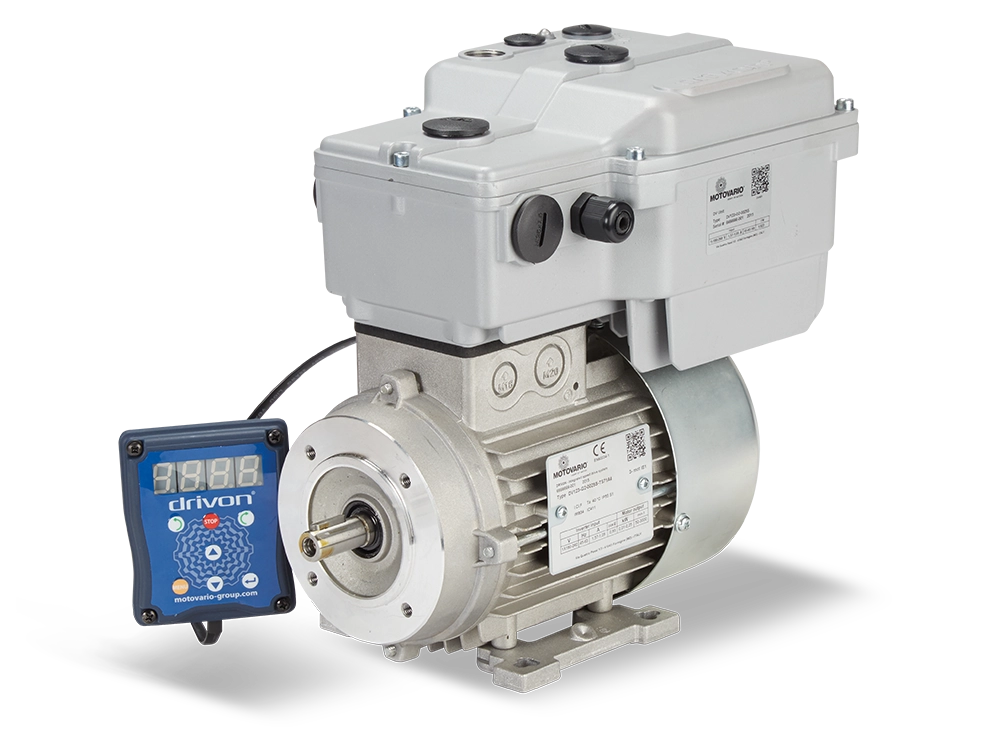

Up to IEC 132 frame / 5.5kW / 4,6 Pole
Integrated single or three phase voltage input inverter motors, ideal for decentralised speed control applications.
Typical applications
Motovario gear units are used across industrial and civil applications, most often where a drive runs continuously and a failure stops a line.

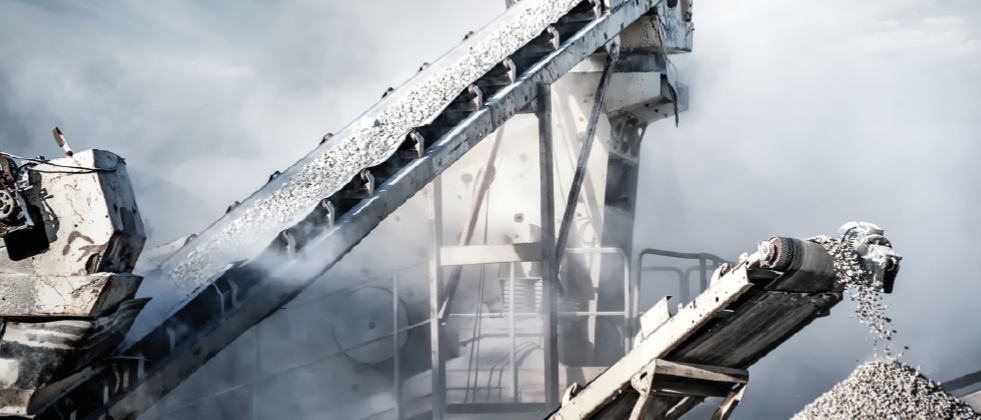

Bevel helical gearboxes are used as a robust solution to withstand tough environments and unpredictable torque demands.

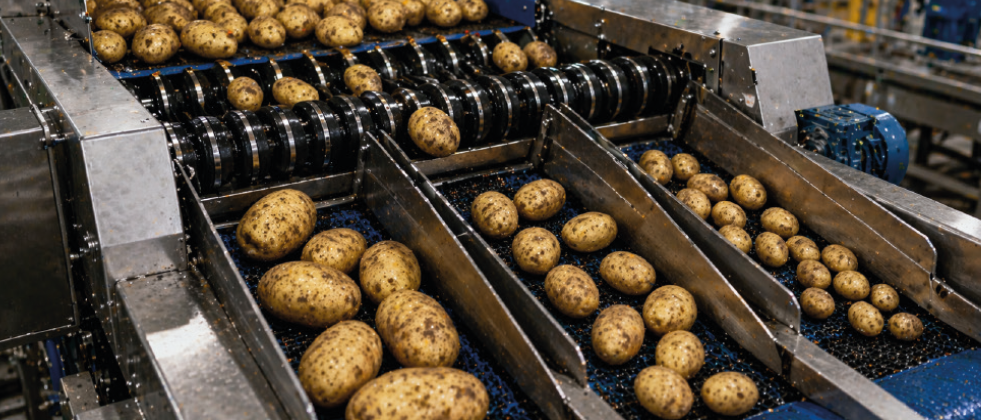

Motovario worm geared motors are often selected for vegetable production, such as grading, sorting and washing, thanks to their exceptional reliability.

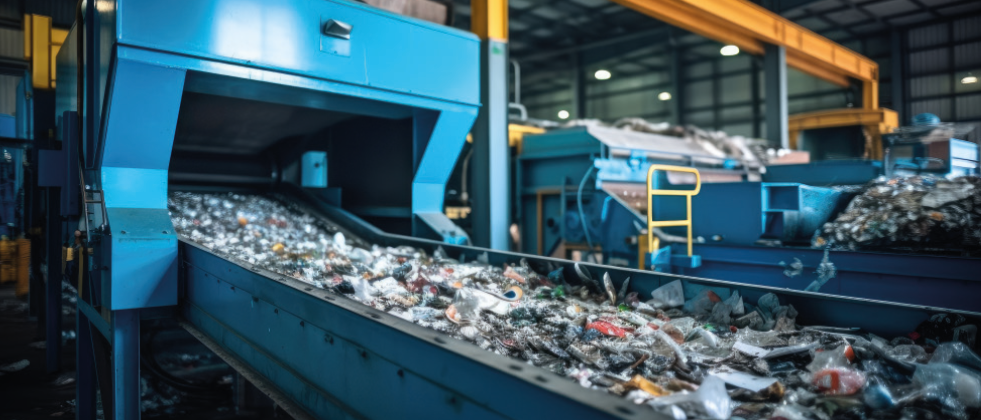

Geared motors are used to drive conveyors and sort materials. Worm gearboxes are frequently used to overband magnets to reclaim ferrous metals.
Motovario was founded in Formigine, near Modena, Italy, in 1965 and has more than 60 years of experience in the design and manufacture of industrial power transmission products. Since 2015, Motovario has been part of the TECO Group, giving the company the backing of a major international engineering organisation while retaining its specialist focus on gearboxes, gear reducers and motor technology.
Motovario manufactures a comprehensive range of industrial gearboxes, gear reducers, geared motors, electric motors, variable-speed drives and inverters. Its gearbox portfolio includes helical, helical bevel, shaft-mounted, planetary and worm gear reducers, with the well-established NMRV and NMRV POWER worm gearbox ranges among its best-known products. Motovario serves industrial customers worldwide through an extensive international network.
In the UK, Betech is Motovario’s National Distribution Partner and official Motovario Assembly Centre for mainland UK, supplying and assembling Motovario products for customers across a wide range of industrial applications.
As a factory-certified Motovario Assembly Centre, Betech holds a substantial range of Motovario components in stock, allowing us to assemble gearboxes and geared motors in a wide variety of configurations. Rather than relying solely on a fixed stock of finished units, components such as gearbox housings, gear sets, output shafts, input adaptors and motor flanges can be combined to meet specific ratio, bore, mounting and motor requirements.
This means we can supply many Motovario gearbox configurations without requiring every possible combination to be held as a separate finished stock item. For example, a requirement for a specific gear ratio, hollow bore and motor size can often be configured, assembled and tested by Betech to meet the customer’s requirements.
Our assembly capability is particularly valuable for replacement Motovario gearboxes and urgent breakdown requirements, where finding the correct configuration quickly can help reduce machinery downtime. Our technical team can help identify the required specification and advise on the most appropriate Motovario gearbox or geared motor for the application.
Selecting the right Motovario gearbox or geared motor depends on the requirements of the application. Key factors include the required output speed, reduction ratio, torque, motor power and mounting arrangement, together with the type of load, operating conditions and duty cycle. Depending on the application, factors such as radial or axial loads, thermal capacity and the available space may also need to be considered.
Motovario offers several gearbox technologies, each suited to different requirements. Worm gearboxes, including the NMRV and NMRV POWER ranges, provide a compact and versatile solution for many industrial applications. Inline helical gearboxes are suited to applications requiring efficient power transmission, while bevel helical gearboxes provide efficient right-angle transmission. Shaft-mounted gearboxes offer a compact solution where the gearbox can be mounted directly onto the driven shaft, while planetary gearboxes are designed for applications requiring high torque and power density.
Need help selecting a Motovario gearbox?
If you already have a gearbox specification or are replacing an existing unit, our Gearbox Only Enquiry Form allows you to provide details such as the gearbox type, ratio, shaft or bore dimensions, mounting arrangement and torque requirements. If you require a complete Motovario geared motor, our Geared Motor Enquiry Form allows you to provide the motor and gearbox requirements together.
Assembled to order
We hold the range in component form, which means ratios, bore sizes and mounting arrangements outside a normal stock list can usually be built and despatched rather than ordered from the factory.
Stock in the UK
Betech keep a comprehensive stock of Motovario motors and gearboxes, with same day despatch available on items ordered before the relevant cut off time.
Non-stock lead times
For items not in stock, contact our sales team for up to date information. We often have an alternative solution available.
Replacing an existing unit
Send us the nameplate, a photograph or a drawing. We will identify the model, ratio and mounting, flag any differences, and quote a direct replacement.
Obsolete and superseded models
Ranges change. If the unit on your machine is no longer made, we will identify the current equivalent and confirm whether it fits the existing baseplate.
Breakdown cover
If a line is down, call us. We quote in minutes, not days.
ISO 9001 certified
Betech 100pt Ltd is UKAS-accredited and ISO 9001 registered.
Frequently asked questions
Betech 100pt Ltd, based in Heckmondwike, West Yorkshire. We have distributed Motovario for many years and are a factory-certified Motovario Assembly Centre. Call 01924 411921 or email sales@betech.co.uk.
An Assembly Centre is certified by Motovario to hold the range as components and build finished gearboxes and geared motors on site. Instead of a fixed list of stock units, the combinations of ratio, bore size, mounting and motor are assembled to order. It shortens lead times on anything that isn’t a standard catalogue item.
From Betech, direct. We hold worm gearboxes, variators and motors in finished stock at Heckmondwike, and hold the helical, bevel helical and shaft mounted ranges as components for assembly to order.
Yes. Because we assemble from components, we hold the parts as well as the finished units – gear sets, output shafts, input adaptors, seals, torque arms and mounting hardware. Send the gearbox model and serial number, or a photograph of the nameplate.

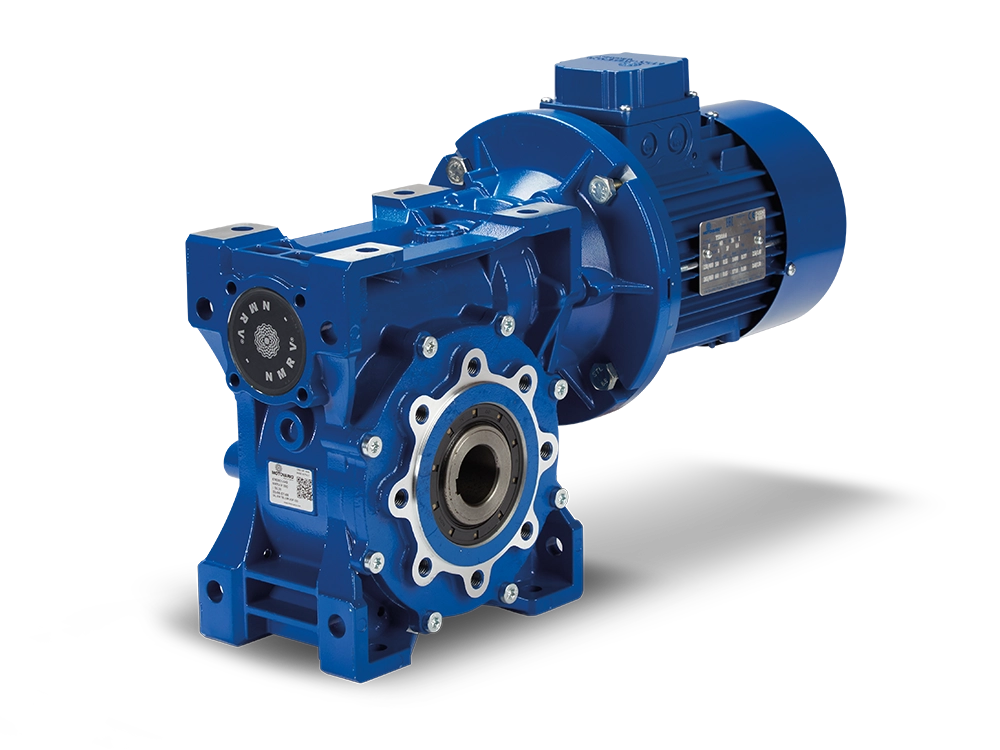

NMRV is Motovario’s worm gearbox designation. The number that follows is the centre distance in millimetres – an NMRV050 has a 50mm centre distance. NMRV-P is the version with a reinforced housing and larger output bearings, used at the larger sizes and where radial loads are higher.
Single stage worm units run from around 5:1 to 100:1. Adding a helical or worm pre-stage takes that considerably higher, into the hundreds. Helical and bevel helical units cover the lower ratios and higher torques. If you know the input speed and the output speed you need, we will work out the combination.
Usually, yes. Several Motovario ranges are built to standard mounting dimensions, so a like-for-like fit is often possible without modifying the baseplate. Send the nameplate or a photograph of the unit you are replacing and we will identify the equivalent, confirm the mounting and flag any differences before you order.
TECO acquired Motovario in 2015. Motovario remains the gearbox and IEC motor brand; TECO covers a wider motor and drive range. Both are supplied through the same channel and Betech stocks both – see our TECO range.
No. Motovario Ltd is Motovario’s own UK subsidiary. Betech 100pt Ltd is an independent distributor and certified Assembly Centre based in West Yorkshire, holding UK stock and building units to order.
Worm gearboxes are supplied filled with synthetic lubricant and are sealed for life in most sizes. Larger units and some mounting positions require a fill and level check on installation. Oil type and quantity vary by size and mounting position, so check the manual for the specific unit – or call us with the model number.
The technical catalogues for each range are in our download library, covering worm, inline helical, bevel helical, shaft mount, planetary, medium heavy duty, variators and motors.
Yes – three phase, brake, SELF Power synchronous and Drivon integrated inverter motors, up to IEC 132 frame. They can be supplied on their own or fitted to a gear unit as a complete geared motor.
Downloads
For technical information, brochures and further product details, visit our downloads page.
