Betech supplies Warner Electric electromagnetic clutches, brakes and controls across the UK. If you have a Warner unit that has failed or worn out, send us a photograph of the nameplate and we’ll identify what’s fitted and find the right replacement – whether that’s the current equivalent or the nearest suitable alternative where the original series is no longer made.
Warner Electric has been building electromagnetic clutches and brakes since 1927, and its units have been fitted to UK production machinery for decades. Many of those still running carry series codes that have long since left the catalogue. Identifying them is most of the job.
We supply the industrial range: clutches, brakes, clutch-brake modules, tension systems and the controls that drive them, for conveyors, packaging lines, printing and converting, food and beverage machinery, baggage handling and lifting equipment.
2Nm to 950Nm – basic design, wrap spring and packaged units

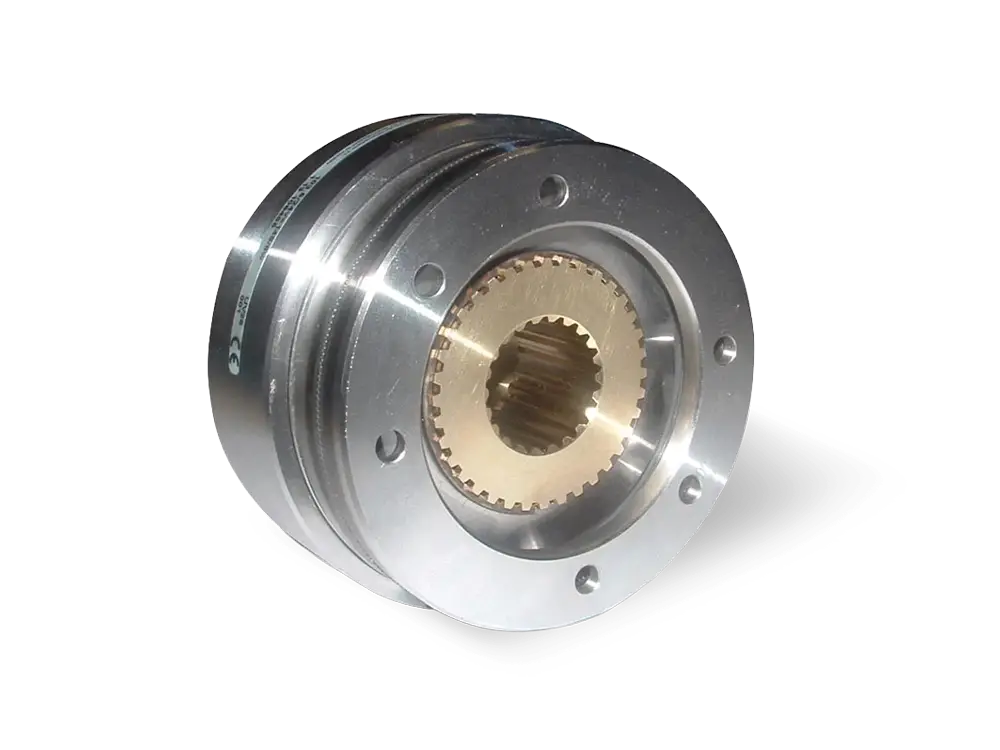

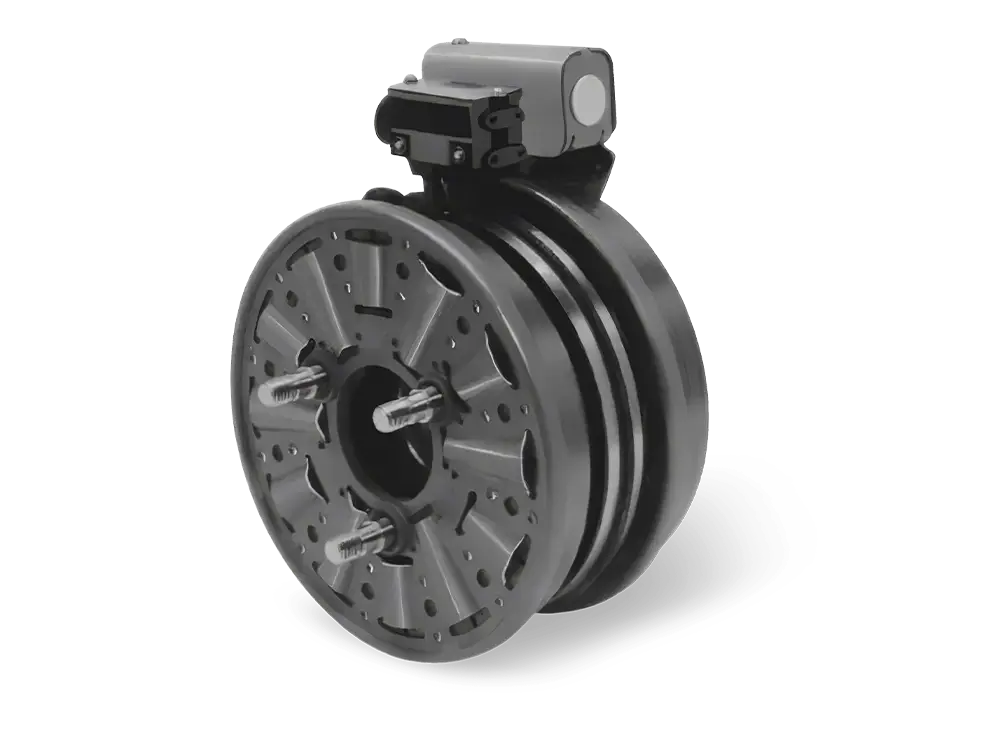

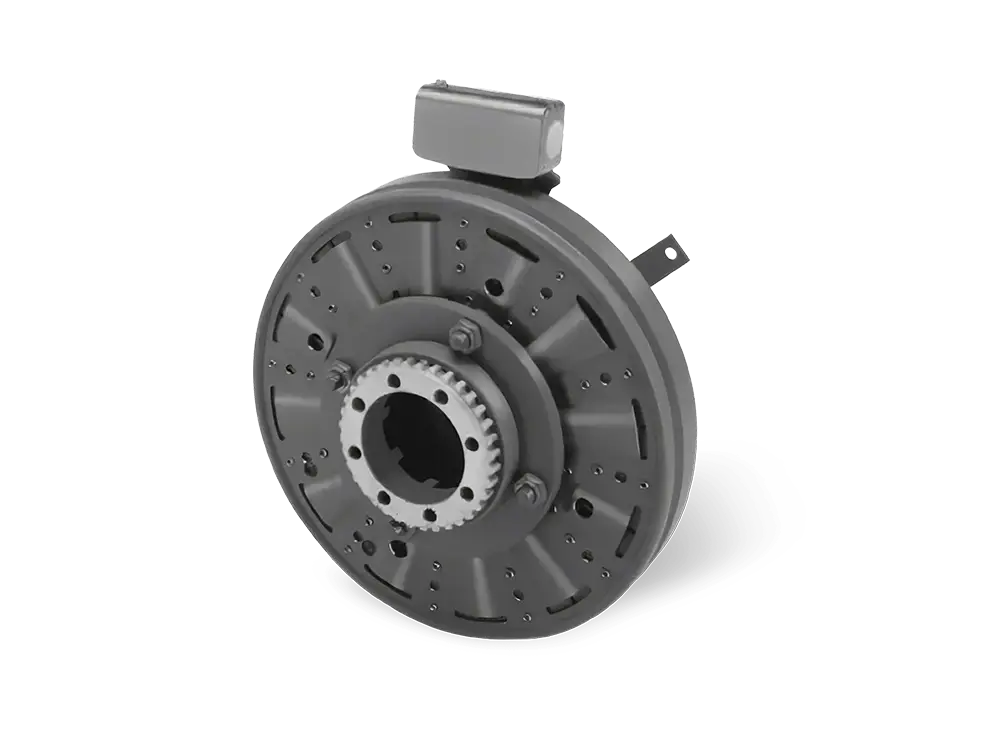

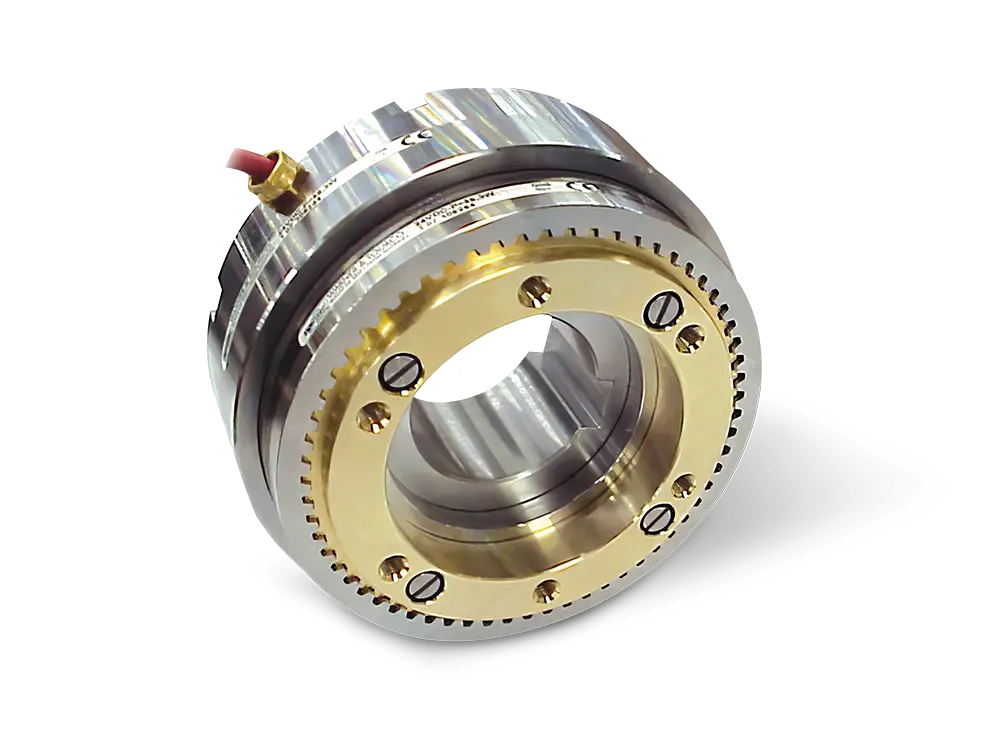

Warner Electric clutches use an electrically energised coil to couple and release a drive, through either a friction face or tooth engagement. The basic design range covers eight sizes from 2.5 to 15.25 inches in flange or bearing mounting, standard or coupling type, normal or heavy duty.

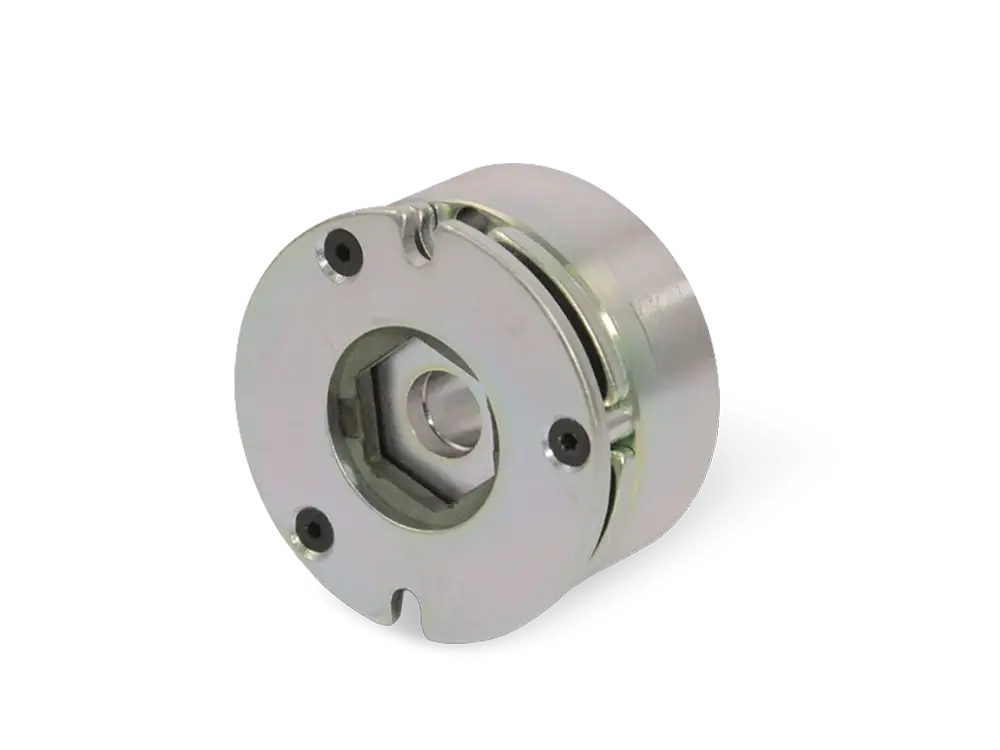

Wrap spring clutches cover five sizes up to 665Nm for single-revolution, multi-revolution and controllable indexing. Packaged clutch-brake units are factory-assembled and aligned, from 7.5Nm to 150Nm.
5Nm to 3,200Nm – power-off fail-safe and power-on designs

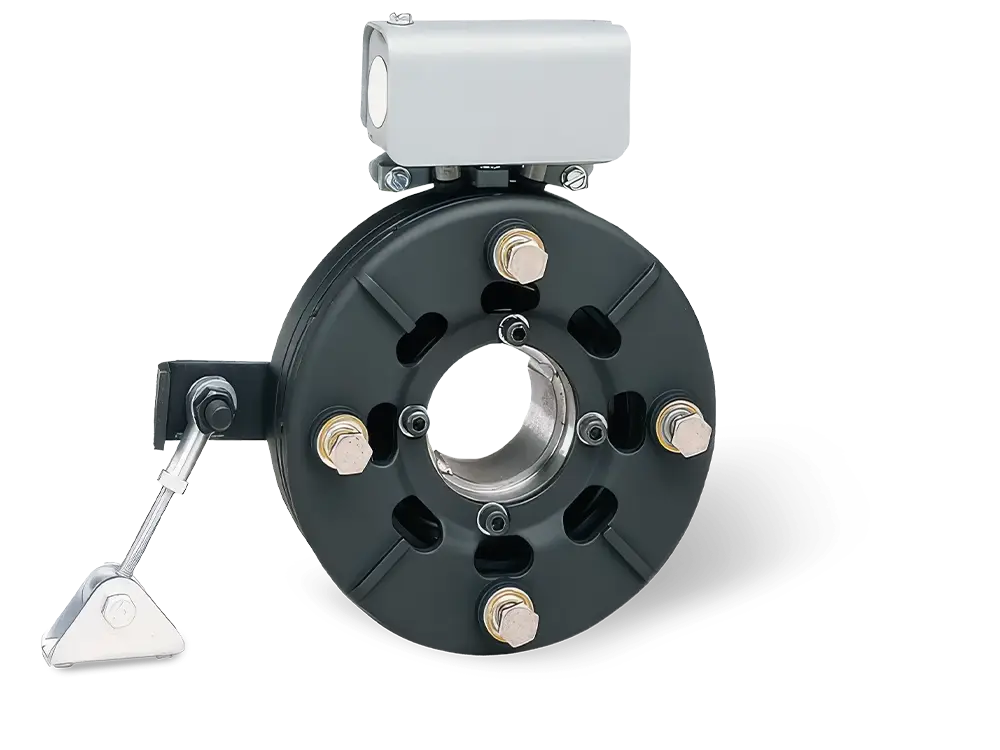

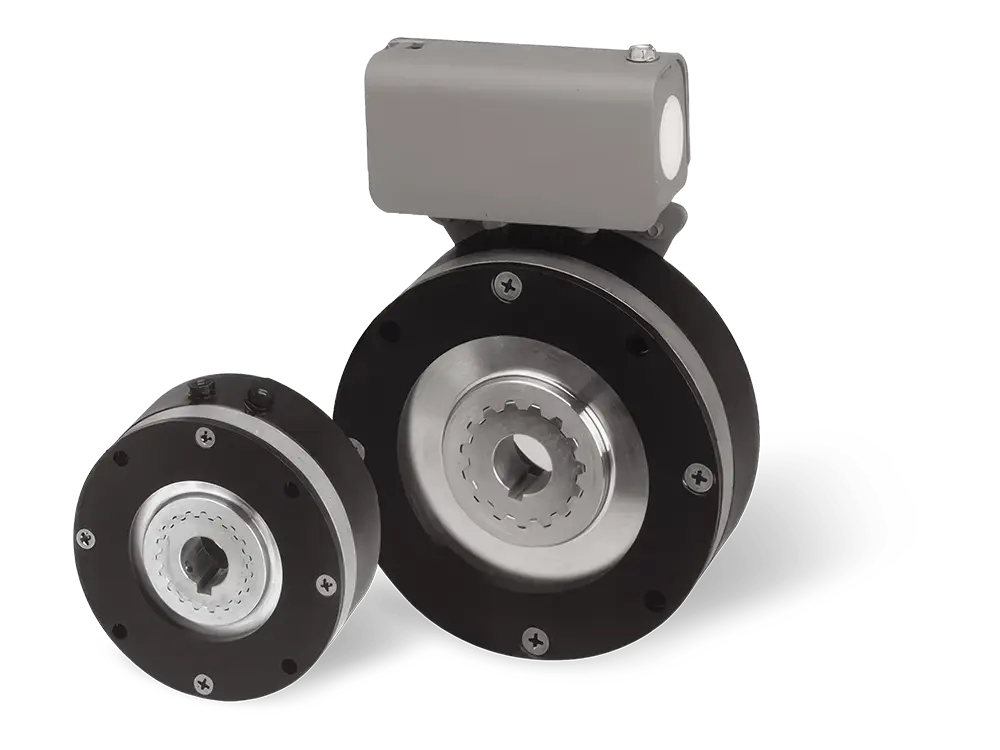

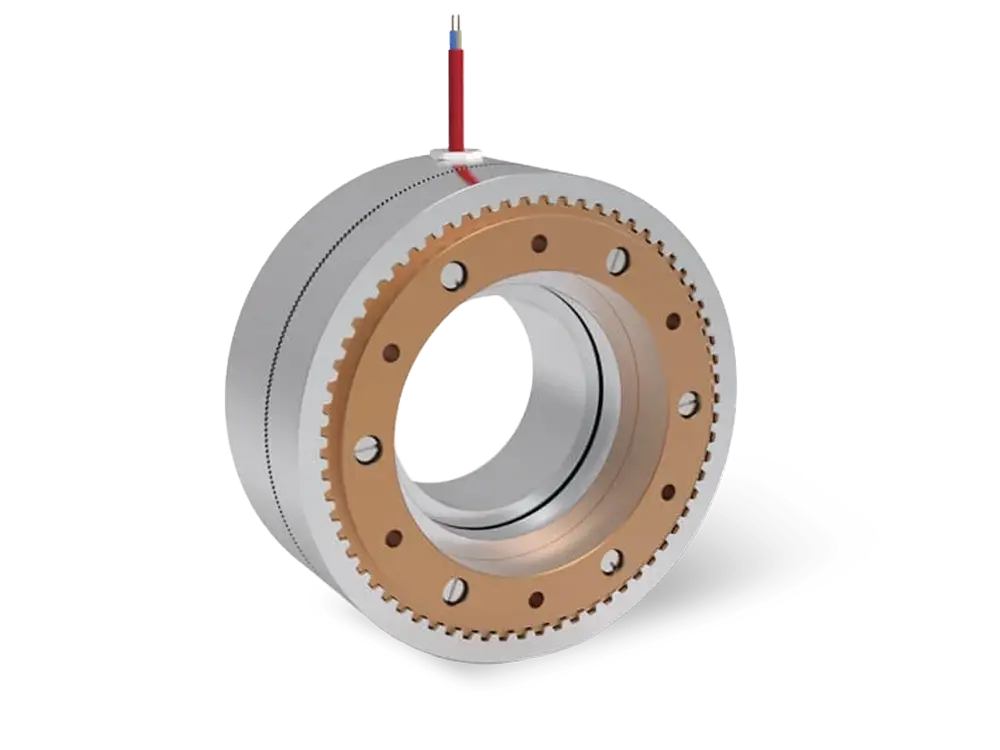

Two groups. Electrically released brakes are spring-applied and engage on loss of supply, holding the load safely in position during a power or motor failure – eight sizes from 5Nm to 3,200Nm.

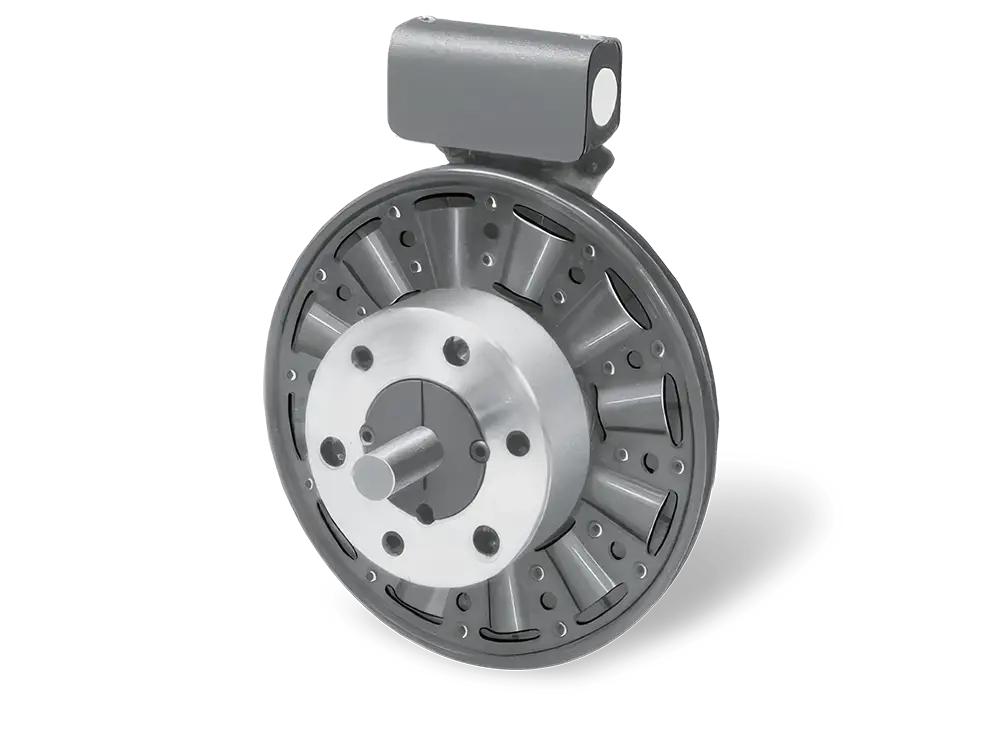

Power-on brakes energise to stop, for controlled stopping and cycling duties. Tension brakes cover web tension, wind and unwind applications from 1Nm to 800Nm.
Rectifiers, power supplies and control modules
The rectifiers, power supplies and control modules needed to switch and optimise a clutch or brake installation, including tension brake controls and sensors.
A replacement only saves time if it fits. Bore and shaft size, mounting, coil voltage, static torque and overall length all have to line up, or a straightforward swap turns into machining and adaptor plates. That’s why we start from the nameplate.
Send us the nameplate. A clear photograph of the nameplate is the best starting point. If you can, add a photograph of the unit in situ and its mounting, plus the motor nameplate if one is fitted. Email sales@betech.co.uk or use Quick Quote.
We identify the unit. Series, size, bore, coil voltage, torque rating and mounting – including older Warner series that are no longer in the current catalogue.
We match it or offer the nearest replacement. Where Warner still makes an equivalent, we quote the current unit. Where it doesn’t, we identify the closest suitable replacement and flag any differences in mounting, bore, voltage or torque before you order.
Typical applications
Warner Electric clutches and brakes are used throughout material handling: conveyors, palletisers, sortation equipment and hoists, where a drive needs to index, stop or hold reliably and repeatably.
Clutch-brake modules give packaging machines the speed, accuracy and repeatability they need, while wrap spring clutches handle precise indexing on filling, capping and carton-forming lines.
Electrically released brakes are spring-applied and engage when power is lost, making them the standard choice wherever a load has to be stopped and held safely during a power-off condition.
Warner Electric’s range has changed a great deal since the 1980s, and some series have no direct successor. When that happens we identify the closest current unit, confirm the critical dimensions against your existing installation, and tell you what differs – mounting centres, bore, voltage or torque – before anything is ordered. Where a drop-in isn’t possible, we’ll say so.
If the nameplate is missing or unreadable, mounting dimensions, bore size and a photograph of the unit will usually get us there.
A Warner Electric distributor. Betech has supplied Warner Electric clutches and brakes to UK industry for over 30 years and is listed in Warner Electric’s own UK distributor network.
Current and obsolete units. We supply the current industrial range and identify replacements for older Warner series no longer in the catalogue.
Stock and lead times. We confirm the lead time on quote.
The whole drive. Clutches and brakes rarely fail in isolation. We also supply the motors, gearboxes and drives they sit alongside, from stock.
Breakdown cover. If a line is down, call 01924 411921. We quote in minutes, not days.
ISO 9001 certified. Betech 100pt Ltd is UKAS-accredited and ISO 9001 registered.
Frequently asked questions
Betech 100pt Ltd, based in Heckmondwike, West Yorkshire, supplies Warner Electric electromagnetic clutches, brakes and controls across the UK. Call 01924 411921 or email sales@betech.co.uk.
Yes. Send us a photograph of the nameplate, ideally with a photograph of the unit and its mounting. The series code, size and voltage on the plate usually identify it. If the plate is missing or unreadable, mounting dimensions and bore size will normally do.
Send us the nameplate and we’ll check whether Warner makes a current equivalent. If it doesn’t, we’ll identify the closest suitable replacement and tell you how it differs – mounting, bore, coil voltage or torque – before you order.
We confirm the lead time on the quote.
The basic clutch and brake range runs from 2Nm to 950Nm across eight sizes. Electrically released brakes run from 5Nm to 3,200Nm. Wrap spring clutches go up to 665Nm, packaged clutch-brake units from 7.5Nm to 150Nm, and tension brakes from 1Nm to 800Nm.
A power-off brake is spring-applied and engages when the supply is removed, so the load is held if power is lost. A power-on brake energises to stop and releases when de-energised. Power-off brakes are used for load holding and safety duties; power-on brakes for controlled stopping and cycling.

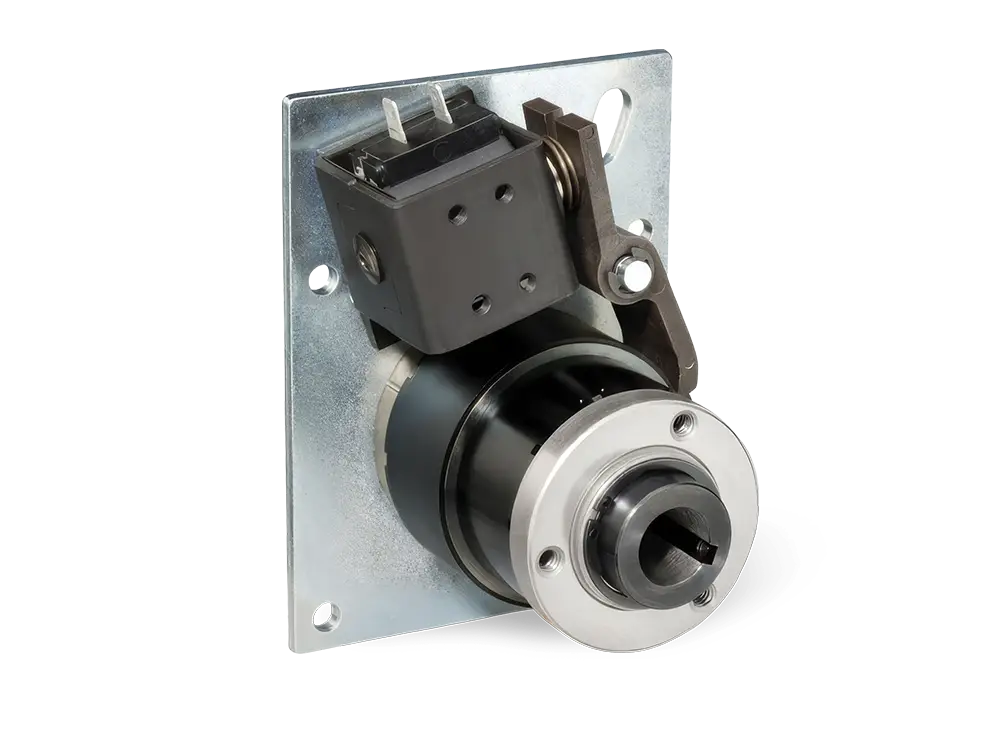

A clutch and a brake supplied as one factory-assembled and aligned unit. The clutch engages the drive, the brake stops it, and the two are interlocked so they never fight each other. They are widely used on packaging and indexing machinery where cycle rates are high and stop position matters.
Precise, repeatable indexing. A wrap spring clutch starts and stops within a single revolution, which makes it the usual choice for feed, cut-to-length and carton-forming mechanisms. Warner’s range covers single-revolution, multi-revolution and controllable models.
Yes. Rectifiers, power supplies and control modules are available alongside the clutches and brakes, including tension brake controls and sensors.
Warner Electric is part of Altra Motion, which became part of Regal Rexnord in 2023. The brand, product ranges and series codes are unchanged.
No. Betech supplies the Warner Electric industrial range – clutches, brakes, clutch-brake modules, tension systems and controls for production machinery. For PTO clutches fitted to mowers, turf and grounds equipment, you’ll need a turf equipment parts supplier.
