We supply TECO’s low voltage range: aluminium and cast iron IEC frame motors up to 90kW, and four variable speed drive ranges covering 0.2kW to 355kW. Aluminium frames for general purpose duty, cast iron where the environment is more severe, and drives from a compact 2.2kW general purpose unit up to 355kW of heavy duty vector control.
We reach that range through our relationship with Motovario, who handle TECO distribution across the UK and Europe. Betech is a Motovario Assembly Centre, and TECO low voltage sits alongside the Motovario and Pujol ranges we supply from West Yorkshire.
If your nameplate says Westinghouse, it is still a TECO motor. TECO formed a joint venture with Westinghouse Electric in 1988 and bought out Westinghouse’s share in 1995, after which the business traded as TECO-Westinghouse. Motors and drives supplied into the UK have carried the TECO name, the Westinghouse name, or both. They are the same product line.
If a motor or drive has failed, send us the nameplate or the model code and we will identify what you have, tell you whether it is still current, and quote the right replacement. If you are specifying from new, call us on 01924 411921 with the duty and we will size it with you.

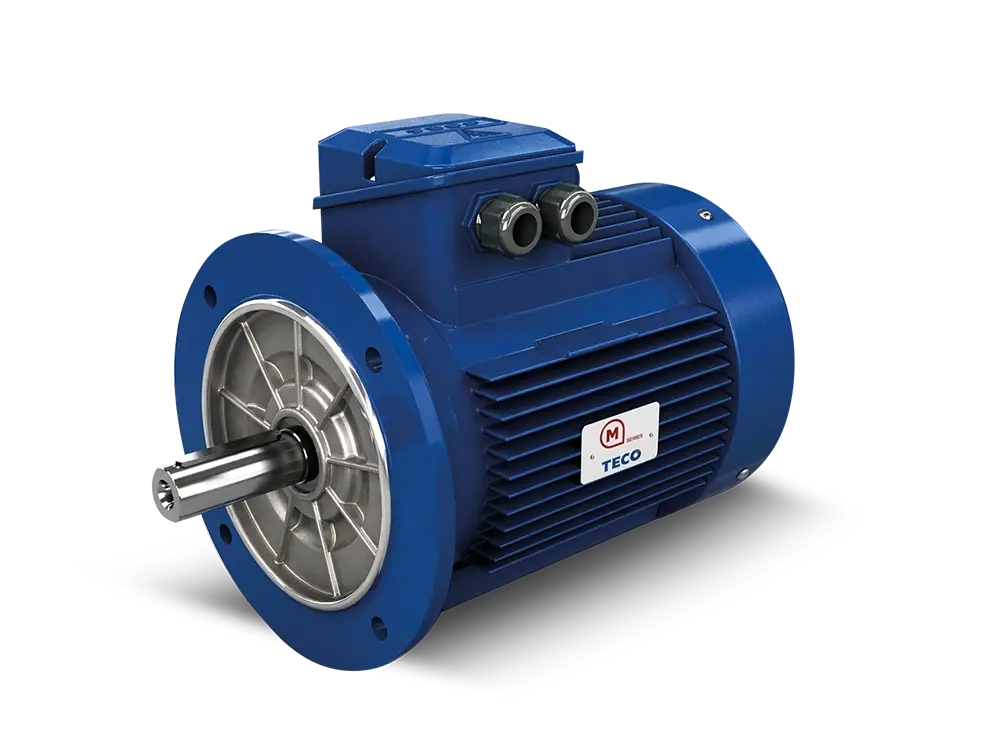

Up to IEC 200 frame / 37kW / 2, 4, 6 Pole
Aluminium frame multi-mount motors for general purpose duty. IP56 protection, PTC thermistors, RAL5010 paint finish. The volume choice for fans, pumps, conveyors and general machinery.

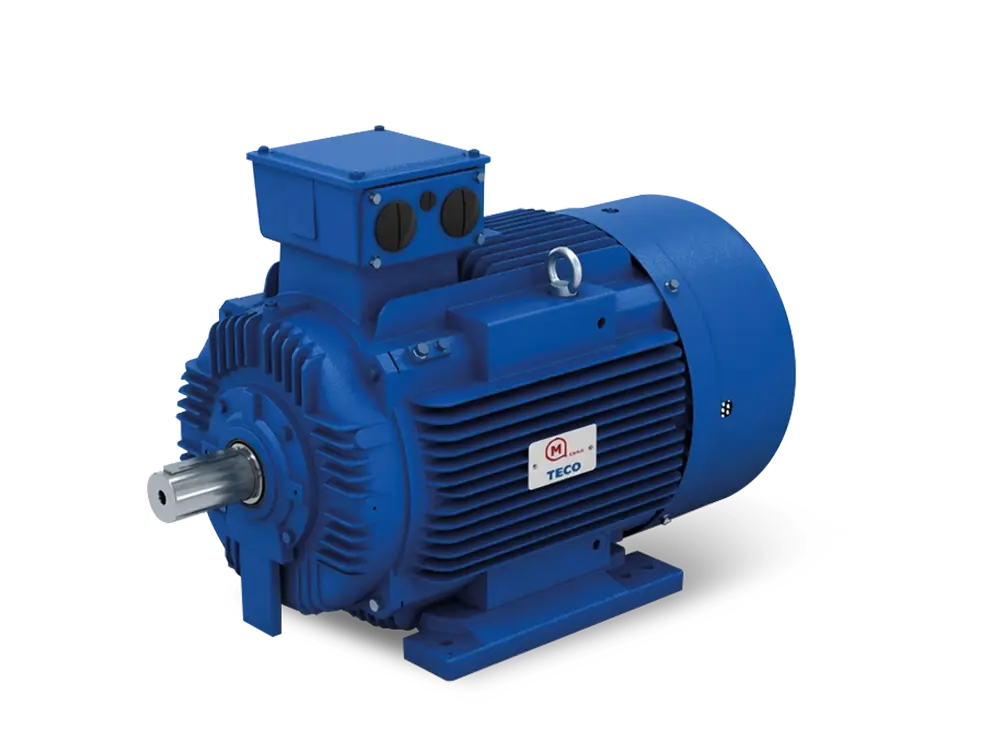

Up to IEC 280 frame / 90kW / 2, 4, 6 Pole
Cast iron frame motors with top mounted terminal box. FAG bearings, PTC thermistors, IP55 protection, RAL5010 paint finish. For higher powers and harder environments than an aluminium frame will take.

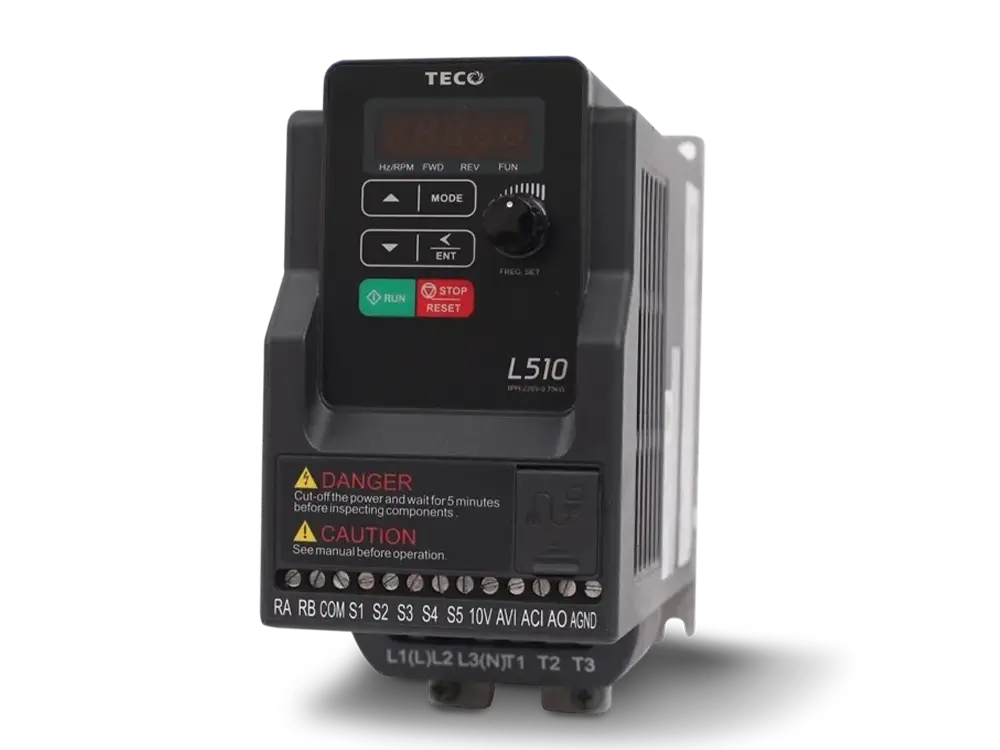

Up to 2.2kW / Panel mount
Compact and cost-effective for general purpose applications, without compromise of reliability or performance.

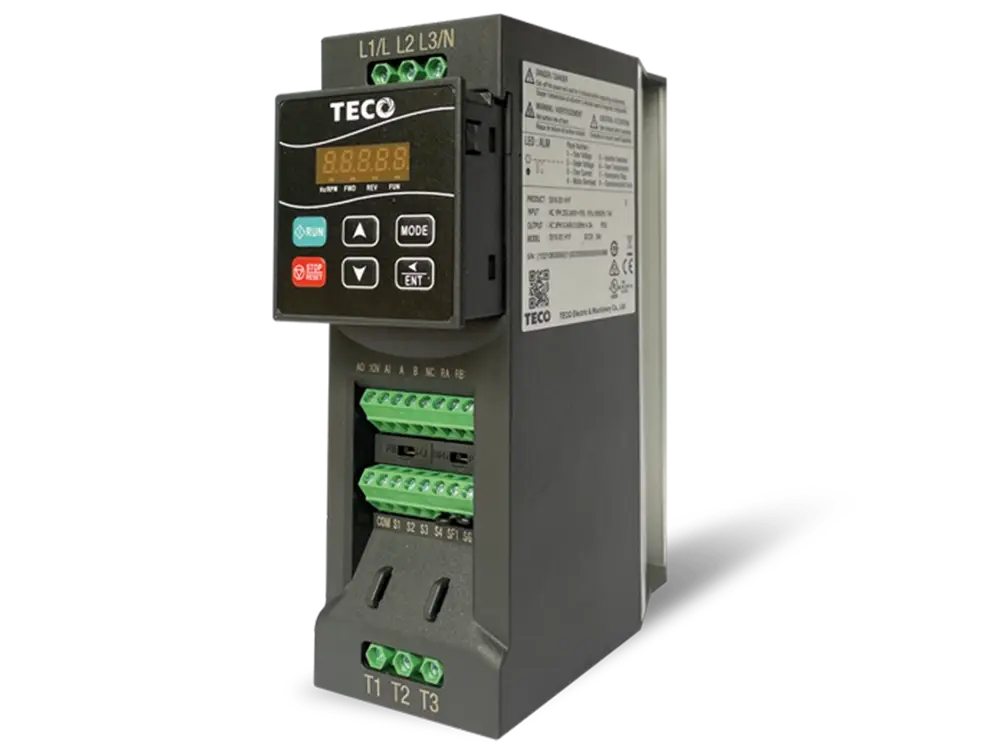

Up to 3.7kW / Bookcase style panel mount
Space saving, bookcase style design drive ideal for OEMs and end users. STO functionality and network communication options.

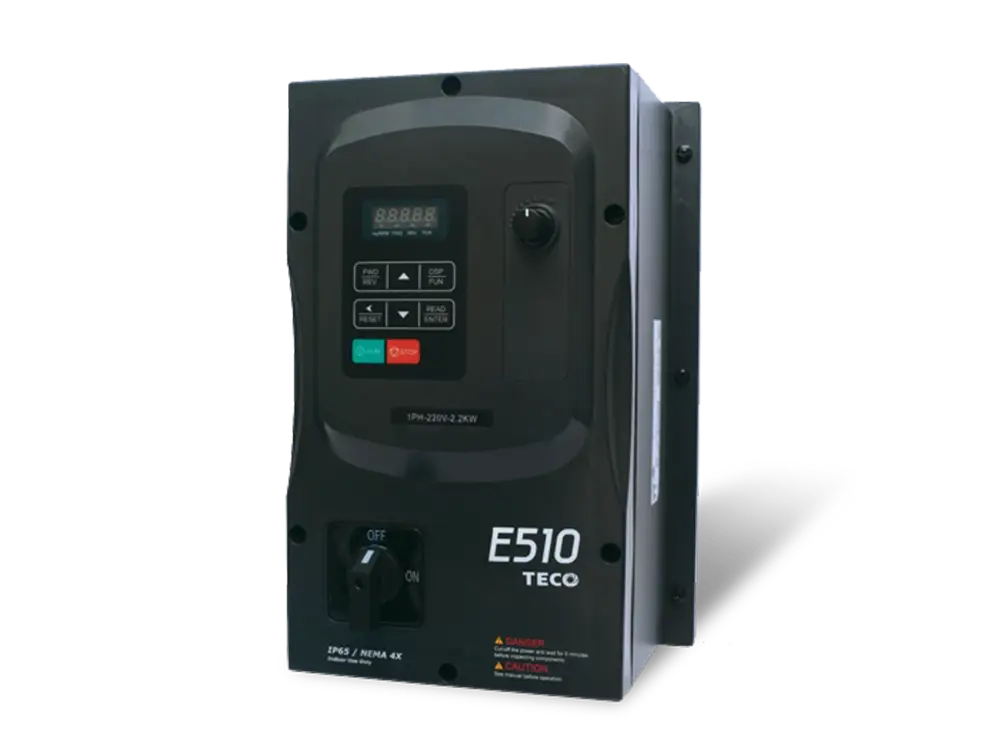

Up to 18.5kW / Panel mount or IP66 enclosed
Sensorless vector variable speed control with built in PID and PLC functionality. Available as an IP66 fully enclosed version.

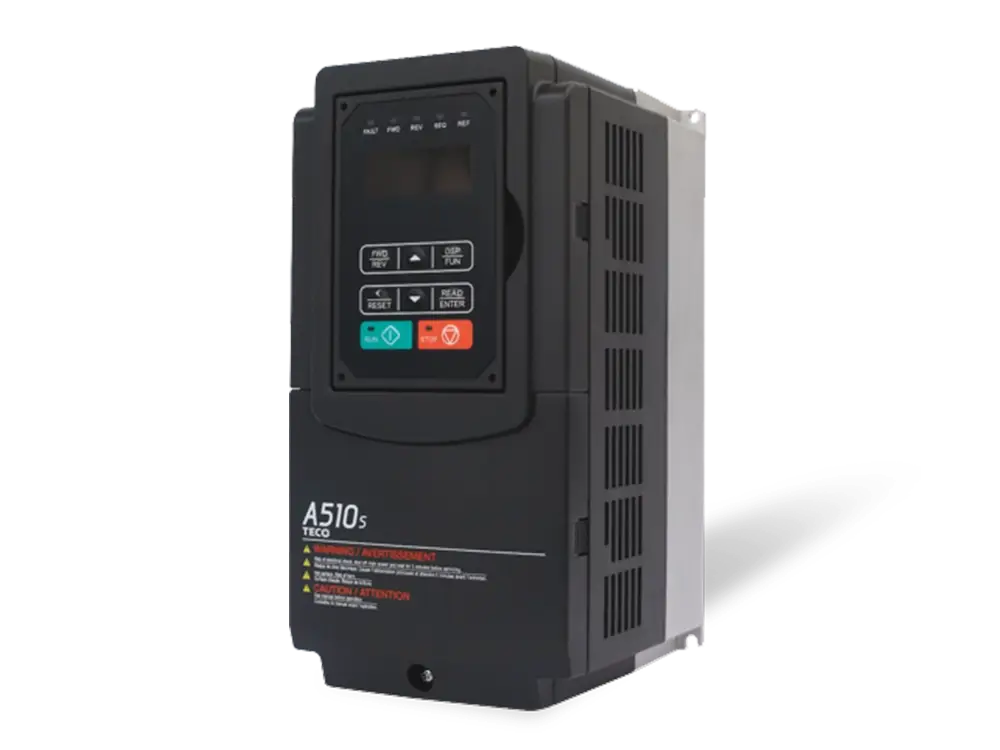

Up to 355kW / Panel mount
High performance drive ideal for heavy duty applications in a wide variety of advanced motor control modes.
When choosing an IEC motor, power, speed and efficiency are important—but so is the motor’s construction. Both aluminium and cast iron motors use standard IEC metric mountings, so the choice largely comes down to the demands of the application.
Aluminium: lightweight and versatile
Aluminium-frame motors are lighter, easier to handle and generally more economical, making them a practical choice for most general-purpose applications such as fans, pumps, conveyors, compressors and machinery.
Our aluminium range features IP56 protection and multi-mounting, covering applications up to IEC 200 frame and 37kW.
Cast iron: robust and heavy-duty
Cast iron motors provide a heavier, more rigid construction, making them well suited to applications where vibration, impact or demanding operating conditions are a consideration.
Our AEEVYY TECO cast iron range extends to IEC 280 frame and 90kW, but we can source larger frames and powers too.
Which should you choose?
As a general guide, choose aluminium for lightweight, general-purpose applications, and consider cast iron where greater mechanical robustness or higher power ratings are required.
The final choice should also take account of the duty, environment, IP rating, efficiency, speed, mounting and bearing arrangement.
Not sure which is right for your application? Send us the duty, environment and mounting details, and we’ll help you select the appropriate motor.
Four ranges cover 0.2kW to 355kW, and the right one is usually decided by the panel and the duty rather than the power alone.
L510S is the general purpose choice for small drives up to 2.2kW where cost and simplicity matter. S510 does the same job in a bookcase format that saves panel width and adds Safe Torque Off and network communications – the usual pick for OEM panel builds. E510S and E710 add sensorless vector control, built-in PID and PLC functionality up to 18.5kW, with the E710 available fully enclosed to IP66 for mounting outside a panel. A510S is the heavy duty range, up to 355kW, with the full set of advanced motor control modes.
If you are replacing a failed unit, send us the model code off the label. If you are specifying from new, call us on 01924 411921 with the motor rating, the duty and the panel constraints and we will size it with you.
Typical applications
TECO motors and drives run continuous industrial duty across UK plant, from general machinery to process and building services.
TECO low voltage motors and drives are trusted to provide reliable, energy efficient performance on extraction fan applications.
Motors are used to drive pumps to move water and other fluids, often on critical applications. Variable speed drives are used to optimise flow rates and ensure efficiency.
Rotary power for equipment such as drills, lathes and small machining tools. TECO low voltage motors provide exceptional torque performance on such applications.
Part of the TECO Group channel. We are a Motovario Assembly Centre and supply the TECO low voltage range through that relationship. Motovario handles TECO distribution across the UK and Europe.
Stock in the UK. We hold TECO motors and drives in stock, with same-day despatch on stock items ordered before our cut-off time – contact our sales team for up-to-date information.
Non-stock lead times. We confirm on quote or contact our sales team for up-to-date information.
Replacements for equipment already installed. Send us the nameplate, the model code or a photograph of the label. We will identify the unit, tell you whether it is current or superseded, and quote the correct replacement.
Motors and drives together. Because we supply both, we can size the drive to the motor and ship them as one order rather than leaving you to match them.
Breakdown cover. If a line is down, call us on 01924 411921. We quote in minutes, not days.
ISO 9001 certified. Betech 100pt Ltd is UKAS-accredited and ISO 9001 registered.
Frequently asked questions
Two IEC frame ranges. Aluminium frame motors run to IEC 200 frame and 37kW, in 2, 4 and 6 pole, with IP56 protection and a multi-mount design. Cast iron frame motors run to IEC 280 frame and 90kW, with a top mounted terminal box, FAG bearings and IP55 protection. Both are low voltage and both take standard IEC metric mountings.
Aluminium for general purpose duty up to 37kW: lighter, cheaper, easier to handle, and right for most fan, pump and conveyor applications. Cast iron for higher powers to 90kW, or where vibration, impact or a rough environment would be hard on an aluminium frame. If you are unsure, send us the duty and the environment.
Four ranges. L510S to 2.2kW for general purpose duty; S510 to 3.7kW in a bookcase format with Safe Torque Off and network options; E510S and E710 to 18.5kW with sensorless vector control, PID and PLC functionality, the E710 available enclosed to IP66; and A510S to 355kW for heavy duty applications. Call us with the motor rating and the duty and we will size it.
TECO motors are industrial electric motors made by TECO Electric & Machinery, founded in Taiwan in 1956 and now operating in 45 countries. The low voltage range sold in Europe covers aluminium and cast iron IEC frame motors to 90kW, alongside the L510S, S510, E510S, E710 and A510S variable speed drive ranges.
TECO manufactures in Taiwan and across its international operations. Low voltage motors sold into Europe are built to European standards – IEC frame sizes, metric mountings, kW ratings and IE efficiency classes – so they fit and replace European machinery directly.
TECO formed a joint venture with Westinghouse Electric in 1988 and acquired Westinghouse’s share in 1995, after which the business traded as TECO-Westinghouse. Motors and drives supplied over the years have carried the TECO name, the Westinghouse name or both. They are the same product line, and we can identify any of them from the nameplate.
Motovario handles TECO distribution across the UK and Europe. Betech supplies the low voltage range through its Motovario relationship. Call 01924 411921 or email sales@betech.co.uk.
Not for low voltage. TECO’s European organisation handles medium and high voltage machines, from 90kW and 2.3kV upwards. Low voltage motors and variable speed drives are distributed through Motovario, and we supply them through that channel.
We hold TECO motors and drives in stock, often available with same-day despatch on stock items ordered before the cut off time. Where a unit isn’t in stock, we confirm the lead time on quote and will offer a suitable alternative rather than leave you waiting.
Usually, yes. Send us the nameplate or the model code and we will identify what you have, tell you whether it is still current, and quote the correct equivalent – including any differences in mounting, rating or terminal arrangement you need to know about before it arrives.
The current motor catalogues, drive catalogues and inverter manuals are all on this page, in the Downloads section below. If the manual you need is for an older unit that isn’t listed, call us on 01924 411921 and we will find it.
