Variable Frequency Drives have become indispensable in modern industry, transitioning from a niche technology to a foundational component for operational excellence.
Their ability to precisely control motor operation delivers a cascade of benefits that directly enhance energy efficiency, extend equipment lifespan, improve process quality, and contribute to sustainability goals.
Perhaps the most widely recognised benefit of VFD technology lies in its capacity to significantly reduce energy consumption in variable torque applications such as centrifugal fans and pumps.
For centrifugal machines, the relationship between speed and power consumption follows cube law behaviour:
This means:

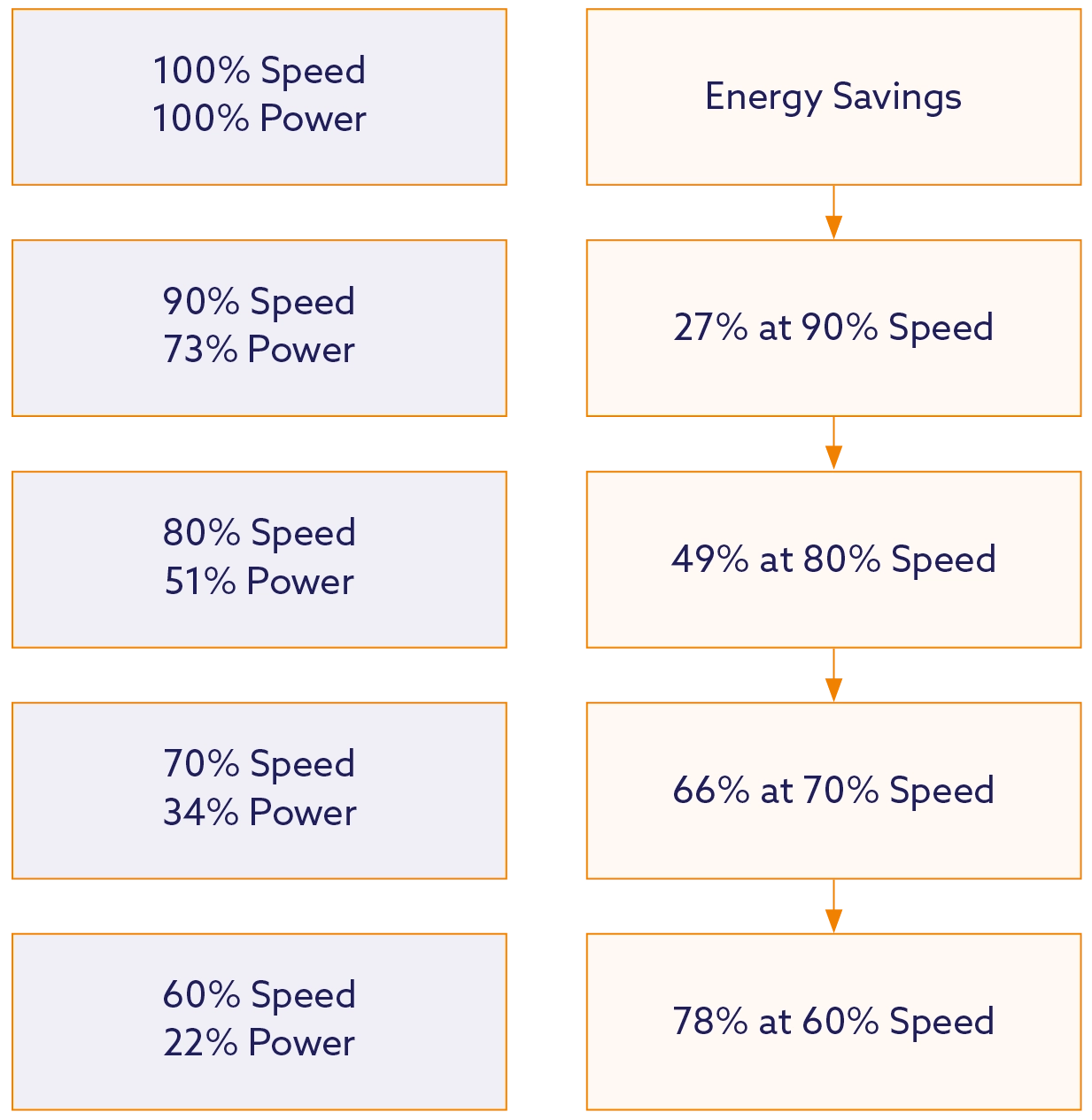

This cubic relationship means that even a small reduction in motor speed yields substantial energy savings. A 20% speed reduction can cut energy consumption by nearly 50%. In contrast, traditional methods like throttling valves or dampers force the motor to run at full speed while mechanically restricting the output—a process analogous to driving a car with the accelerator fully depressed while controlling speed with the brake.
| Component | Traditional Starting Impact | VFD Soft Start Benefit |
|---|---|---|
| Motor Bearings | High radial/axial forces | Extended life (2-3x typical) |
| Couplings | Shock loading, fatigue | Reduced wear, alignment stability |
| Belt Drives | Sudden tension spikes | Improved belt life, reduced slippage |
| Gearboxes | Impact loading | Reduced backlash wear, smoother operation |
| Driven Equipment | Mechanical shock | Protection of impellers, rotors, seals |
*Based on £0.12/kWh, 8760 hours/year operation
VFDs provide a controlled, gradual acceleration and deceleration of the motor, reducing mechanical stress on the entire system.

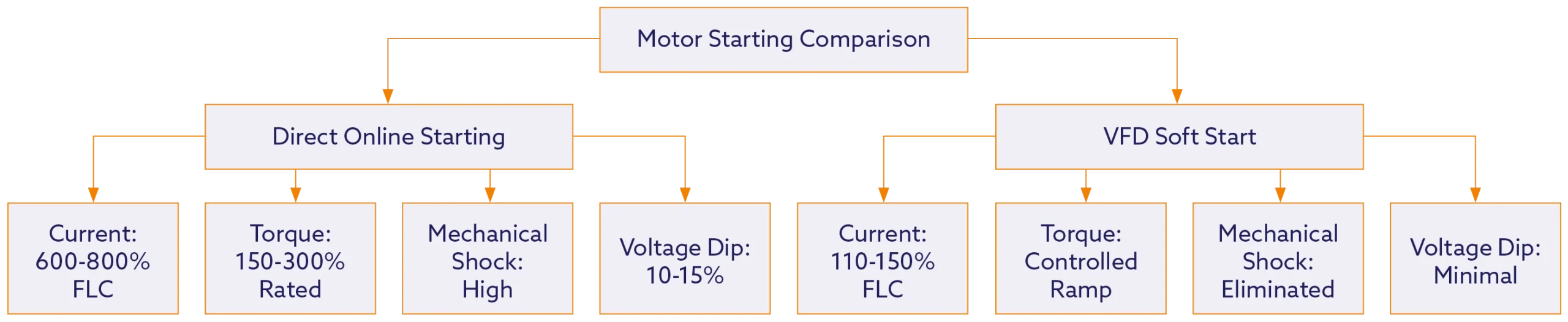

Traditional direct-on-line starting creates severe electrical transients:
VFD Soft Start Characteristics
The elimination of starting shocks provides substantial benefits for mechanical components:
| Benefit Category | Key Outcomes | Typical Savings/Impact |
|---|---|---|
| Energy Efficiency | Reduced kWh consumption | 20–50% savings |
| Soft Start/Stop | Minimised electrical & mechanical stress | Longer asset life |
| Improved PF | Reduced utility penalties | 5–15% billing reduction |
| Process Control | Improved quality & throughput | Higher yield rates |
| Regenerative Braking | Energy fed back to grid | 10–30% recovery in applicable systems |
| Environmental Impact | Lower CO₂ emissions | Support ESG goals |
VFDs correct the poor power factor often associated with induction motor operation under varying load conditions.
This improvement reduces utility demand charges and improves overall electrical system efficiency.
| Parameter | Description & Selection Criteria |
|---|---|
| Voltage & Phase | The VFD's output voltage and phase must match the motor's rating (e.g., 400V, 3-phase). The VFD's input must also match the available site supply (e.g., 400V, 3-phase input for a 400V, 3-phase motor). |
| Power Rating (kW/HP) | The drive's power rating should be equal to or greater than the motor's rating. For demanding applications, it is best practice to select a VFD one frame sise larger to provide additional thermal headroom. |
| Full Load Amps (FLA) | This is the most critical parameter. The VFD must have a continuous output current rating that exceeds the motor's FLA. Always prioritise the current rating over the kW rating, as motors with the same power can have different current draws. |
| Motor Type | The control algorithm of the VFD must be compatible with the motor technology. AC Induction Motors: The most common type, compatible with standard V/f or Sensorless Vector Control (SVC) drives. Permanent Magnet (PM) / Synchronous Reluctance (SynRM): These high-efficiency motors require a VFD with a specific control mode and often an auto-tuning procedure to operate correctly. |
| Speed (RPM) & Poles | The VFD must be programmable with the motor's nominal speed and number of poles to ensure accurate slip compensation and speed control. |

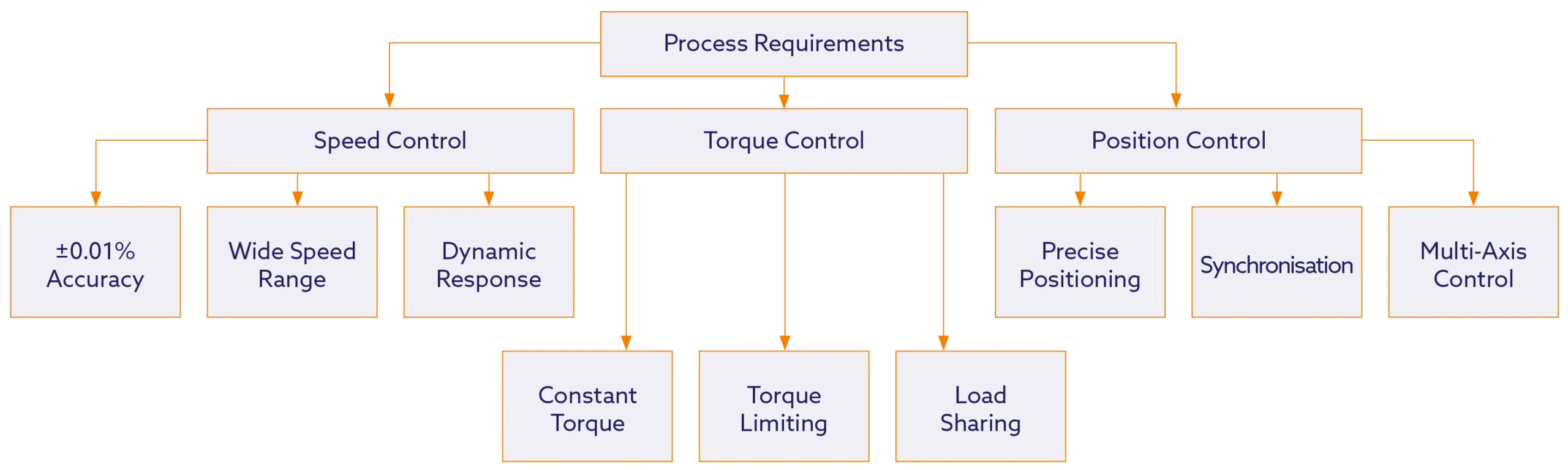

The precise speed and torque regulation delivered by VFDs allows processes to operate optimally under changing conditions, improving both quality and throughput.
In applications with overhauling loads (e.g., cranes, hoists, elevators, downhill conveyors), kinetic energy must be dissipated during braking. Standard VFDs dissipate this energy as heat through braking resistors. However, VFDs with Active Front End (AFE) technology can capture this energy and feed it back to the grid.
The operational advantages of VFDs translate directly into a smaller environmental footprint.
Energy efficiency improvements directly translate to reduced carbon emissions:
| Operating Condition | Input Power Factor | Motor Power Factor | System Benefit |
|---|---|---|---|
| Full Load | 0.95-0.98 | 0.85-0.90 | Excellent correction |
| Partial Load | 0.92-0.96 | 0.70-0.85 | Good correction |
| Light Load | 0.85-0.92 | 0.50-0.70 | Significant improvement |
Next, in part 5 of our VFD series, we will look at the Key Selection Considerations for Variable Frequency Drives.
